Common Crushing Pain Points in Fertilizer Processing

The fertilizer processing industry generally faces several challenges such as the formation of lumps in fermented manure, difficulty in crushing hard fertilizers, easy blockage of machinery due to high-humidity raw materials, uneven particle size of the output, and rapid wear of crushing equipment. As a professional fertilizer machinery manufacturer, Lane has independently developed four series of crushing equipment: chain crusher, vertical crusher, horizontal semi-wet material crusher, and hammer crusher. Relying on mature manufacturing processes and customized service capabilities, it has successfully solved various crushing problems in fertilizer production. In addition to processing fertilizer raw materials, the equipment can also process various brittle industrial materials such as coal, limestone, shale, and ores.

Raw Materials Applicable to LANE 4 Types of Anti-Clog Fertilizer Crushers

Our multi-model fertilizer crushing equipment covers soft wet organic materials, medium-hard chemical raw materials and rigid mineral raw materials, with wide material compatibility:

• Organic wet raw materials: fermented chicken manure, cow dung, pig manure, sheep manure, biogas residue, sludge, crop straw, corn stalk, domestic organic waste
• Chemical fertilizer raw materials: granular urea, ammonium phosphate, potassium salt, calcium phosphate, heavy calcium, nitrate phosphate, agglomerated compound fertilizer return materials
• Mineral and industrial brittle materials: coal, slag, shale, limestone, copper ore, iron ore, cement clinker, gypsum, gangue

Detailed Introduction of LANE Core Fertilizer Crusher Models

 LANE Chain Feryilizer Crusher — Special for Medium-Hard Block Fertilizer and Corrosive Wet Materials

Our chain fertilizer crusher is engineered exclusively for hard lumpy fertilizers and corrosive wet feedstock. Acting as the core anti-clog equipment on compound fertilizer production lines, it can steadily process materials with moisture levels hitting 50%.

Structure and Working Principle

This machine adopts the widely recognized horizontal double-rotor layout. Two independent motors drive a pair of rotors, enabling the linear speed of the ring chain to reach 28–78 meters per second. Each chain seat is equipped with a wear-resistant forged steel chain head to enhance the impact crushing performance. Anti-corrosion rubber or polypropylene lining is installed inside the machine shell to prevent the material from adhering to the inner wall. Quick-opening inspection doors are provided on both sides for easy daily cleaning. The base is equipped with shock absorbers, which can effectively reduce operating vibration and operational noise.

Work process: Raw materials flow into the crushing chamber through the feed port and fall into the working area of the double rotor. The high-speed rotating chains perform two rounds of impact crushing. The chain on one rotor strikes the material and throws it to the opposite rotor, and then the chain on the opposite rotor impacts the material again to further refine the particles. Operators can adjust the output fineness by adding or reducing the chains; when all the chain groups are installed in place, this equipment can crush the materials to particles smaller than 1 millimeter.

Unique Core Advantages

• Super strong moisture adaptability: Capable of processing livestock manure, sludge and other high-moisture materials (up to 50% water content) without any clogging issues
• Anti-corrosion and long service life: Combined protection from plastic lining and alloy chain heads slows down equipment corrosion in chemical fertilizer processing environments
• Energy-saving design: Dual independent motor drive cuts power consumption by 15%-20% compared with conventional single-rotor chain crushers
• Flexible particle size switching: Swap between coarse crushing (<3mm) and ultra-fine crushing (<1mm) simply by adjusting the number of installed chains

Expanded Technical Upgrade Scheme

Optional upgraded vertical chain hammer composite model: Integrates chain pre-crushing + hammer blade fine grinding technology, with an output fineness of up to 50 mesh (0.3 mm), suitable for ultra-fine processing of fertilizers and mineral powders.

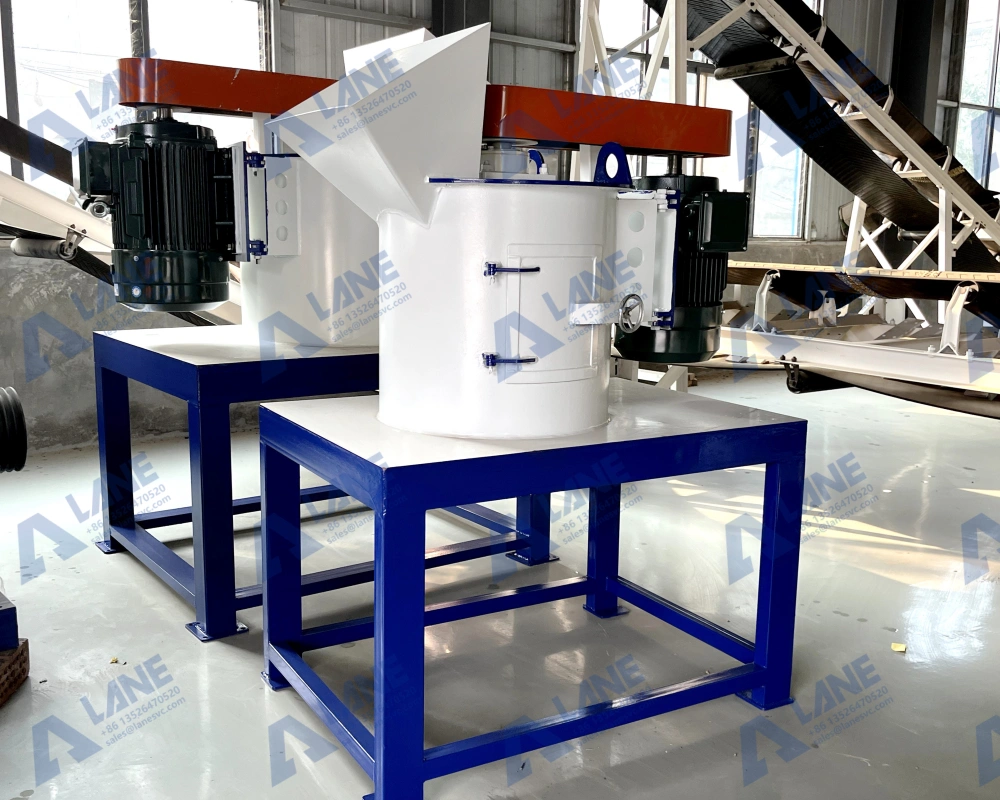

 LANE Vertical Fertilizer Crusher — Compact Fine Crushing Equipment for Organic and Compound Fertilizer Lines

Vertical fertilizer crusher is widely matched with organic and compound fertilizer production lines, featured with compact footprint, low abrasion and stable fine crushing performance, slightly affected by raw material moisture.

Structure and Working Principle

The fertilizer crushing equipment is composed of a base frame, a casing, upper and lower bearing seats, a main shaft, a hammer head, a pulley, and a motor support. The top of the casing is equipped with a feeding hopper and a cover for maintenance, which facilitates quick disassembly and replacement of the hammer head. The motor drives the main shaft and the hammer head to rotate at high speed through the pulley.

Materials fall into the crushing cavity from the top inlet, collide with fast-spinning hammer blades, bounce back to the inner casing wall for a secondary impact, and after repeated hitting, turn into particles smaller than 3 millimeters before discharging from the bottom outlet.

Product Highlights

• Compact space-saving structure with low overall manufacturing cost; adopts the “stone hitting stone” crushing principle to minimize wear on vulnerable spare parts
• Dual functions of coarse grinding and fine pulverization, featuring high crushing efficiency and obvious energy-saving effects
• Little interference from material moisture; stably process feedstock with roughly 8% water content without material sticking
• Low noise & dust pollution: Operating noise stays below 75 decibels, and the fully enclosed crushing cavity reduces dust leakage
• Wide material range: Suitable for medium-hard & super-hard materials including limestone, cement clinker, copper ore, iron ore, slag and gypsum

Standard Daily Maintenance Guidelines

• Inspect the crushing cavity and clear all iron impurities before startup to prevent machine damage
• Never replace pulleys randomly, as abnormal rotating speeds may trigger potential safety hazards like cavity rupture
• Run the machine empty for 2–3 minutes after startup; only start feeding materials once no abnormal vibration or noise is detected
• Maintain steady feeding volume; avoid long-term overload operation to prevent material blockage
• Conduct monthly inspection on bearings, bolts, lubricating parts and hammer head wear degree
• Fully clean the whole machine and coat anti-rust oil on all surfaces if the equipment will be out of service for a long time

 LANE Horizontal Fertilizer Crusher — Zero-Clog Machine for Fermented Wet Organic Raw Materials

Our horizontal fertilizer crusher is the top pick for processing fermented wet organic raw materials. It’s custom-built for sticky high-moisture materials, and the bottom screen-free design completely rules out clogging risks during operation.

Structural Composition

Three core assemblies make up the machine: high-carbon steel welded frame, double-layer blade rotor crushing unit, flexible belt transmission system. The frame is welded with thick channel steel and steel plates to guarantee stable load bearing. Double-layer cutting blades mounted on the rotor deliver two-stage crushing. The flexible belt transmission buffers impact force and offers reliable protection for the driving motor

Working Principle

The motor drives the pulley to rotate the main shaft at high speed. The wet raw materials enter the crushing chamber from the front feed port. They are first cut into pieces by the cutting disc of the front rotor, and then sent to the rear hammer plate crushing zone for secondary fine grinding. The qualified materials are directly discharged from the rear discharge port, without any screen obstruction.

Core Advantages

• Two-stage crushing technology delivers twice the crushing effect of ordinary single-layer blade crushers
• No bottom screen structure: Even ultra-sticky manure, sludge and biogas residue won’t clog the machine or burn out the motor
• Forged high-alloy hammer blades: Outstanding wear resistance, far longer service life than ordinary cast hammer heads
• Bidirectional gap adjustment: When hammer blades wear down, operators only need to adjust their installation positions instead of full replacement to cut maintenance costs
• Simple single-person operation, easy disassembly for routine cleaning and maintenance

Application Scope

Fermented chicken manure, pig manure, cow manure, biogas residue, sludge, agricultural straw, municipal organic waste, dried rattan, dried seeds, broken bricks and waste ceramic.

Main Production Capacity Range

There are three standard models of thefertilizer crushers available for selection. The smallest model, LAC-60H, has an hourly production capacity of 2-4 tons and is equipped with a 30kw motor; the medium-sized model, LAC-80H, produces 3-6 tons per hour and is powered by a 37kw motor; the largest model, LAC-90H, processes 4-8 tons per hour and is equipped with a 40kw motor. All these models have a stable output particle size of 3-6 millimeters.

LANE Hammer Fertilizer Crusher – A dual rotor anti-clogging crusher suitable for high-humidity organic fertilizer production lines

Double-rotor series hammer fertilizer crusher crusher is targeted at high-humidity organic fertilizer production lines, with bidirectional feeding and discharging design to boost continuous production efficiency and avoid wet material blockage.

Structure and Working Principle

The fertilizer crusher is composed of a split-type casing, two rotors, a main shaft, an impact plate, and alloy hammers. Each set of rotors is equipped with 6 to 8 alloy hammers, and the high-toughness main shaft bears all the impact loads. Two motors drive the two sets of rotors to rotate synchronously at high speed. The material is first crushed by the upper rotor and then finely ground by the lower rotor. The mutual collisions between the materials further refine the particle size, with the output particle size controlled below 3 millimeters. The entire machine has no screen, eliminating the problem of wet materials sticking and blocking.

Fertilizer Crushers’ Competitive Advantages

• Bidirectional rotation structure: Materials can be fed and discharged from two directions, significantly reducing equipment downtime and improving continuous production efficiency.
• High energy utilization rate: The dual hammerheads simultaneously impact and grind the materials, reducing unnecessary energy consumption.
• Uniform finished product particles: Perfectly matched with the fertilizer granulation process, ensuring the consistency of finished fertilizer particles.
• Adjustable gap: By adjusting the gap between the hammerheads, different finished particle specifications can be flexibly switched.
• Machinable alloy hammerheads + bidirectional gap adjustment: Extends the service life of vulnerable parts and reduces maintenance costs in the later stage.

Universal Core Features of All 4 LANE Fertilizer Crushers

• Wide material compatibility: Cover soft wet organic waste, medium-hard chemical fertilizer lumps and hard mineral raw materials, one machine for multiple purposes
• Adjustable finished fineness: Control particle size by adjusting rotor speed, hammer quantity or hammer gap according to production demand
• Heavy-duty wear-resistant configuration: Core vulnerable parts (hammer heads, chains, blades) adopt manganese steel and tungsten carbide alloy for anti-corrosion and anti-impact performance
• Professional anti-clog design for wet materials: Semi-wet, chain and hammer crushers cancel bottom screen mesh, solve the industry-wide pain point of high-moisture material blockage
• Low noise and environmental protection: Shock absorption structure and closed crushing cavity reduce vibration, noise and dust leakage, meet factory environmental standards

Why Choose LANE Fertilizer Crushers for Your Fertilizer Plant?

Integrated Engineering Solution Capability

We don’t just sell single fertilizer crushers separately. We can also supply matched screw conveyors, screening machines and dust removal equipment to build a complete production line. The closed conveying system delivers dust-free manufacturing, fully meeting environmental emission standards for factories across the globe.

Fully Customized Design Service Targeted at Anti-Clog Demand

We customize inner lining materials (rubber or polypropylene) and alloy grades of vulnerable parts based on material corrosiveness and moisture levels. We also adjust motor power, voltage and machine dimensions according to customers’ factory layout and local power supply standards. The tailor-made design perfectly fits individual production lines and avoids material clogging from the structural root

 Full Lifecycle Technical Support for Stable Anti-Clog Operation

We optimize the pre-sales process and provide on-site fertilizer crushers installation guidance, commissioning, and long-term after-sales technical support. Our engineers continuously monitor operational data to ensure that the equipment’s production capacity and particulate emission sizes fully comply with standards. Should any potential clogging issues arise, we can quickly provide targeted solutions.

Conclusion

The Fertilizer crusher is a core process in the production of organic and compound fertilizers. Frequent clogging of grinders can directly interrupt production, reduce pellet quality, and increase maintenance costs. Lane has introduced four models of anti-clogging fertilizer crushers, each specifically designed for different material characteristics, with the aim of fundamentally addressing industry pain points such as clogging caused by high moisture content, inconsistent particle sizes, and rapid component wear. With comprehensive engineering expertise, proprietary anti-clogging solutions, and comprehensive after-sales support, Lane’s four series of fertilizer crushers have become the brand of choice for fertilizer crushers in both new and retrofitted fertilizer plants.

If you are planning to build a new fertilizer production line, or if your existing fertilizer crushers frequently clogs and you are considering an upgrade, please feel free to contact LANE Heavy Machinery. We will immediately send you a detailed quote, a complete list of equipment specifications, and videos showing our four clog-resistant crushers in actual operation for your reference.
