Long-Term Hidden Operation Losses Caused by Ordinary Rotary Screener in Organic Fertilizer Granule Sorting

Wet Residues Constantly Block Mesh & Disrupt Production Rhythm

The fertilizer still retains moisture after drying, and the fine powder is very easy to get stuck in the rotary screener holes of ordinary rotary screener. Every two or three hours, the machine must be stopped for manual cleaning. Many fertilizer factories only equip cheap single rotary screener for material separation, and every two or three hours. This forces the entire production line to halt, continuously reducing effective production time and steadily driving down capacity.

Single-Layer Ordinary Rotary Screener Leads to Complicated Processes & Extra Labor Cost

The ordinary single-stage rotary screener can only roughly separate the material, lumps, standard particles, and fine powder cannot be separated at one time, and it needs to be placed in series with multiple devices, and the material needs to be transferred back and forth and needs to be guarded by specialized personnel, which consumes both the factory area and labor costs.

Mixed Fine Powder Lowers Finished Product Qualification Standard

After the rotary screener is blocked, the fine powder cannot be fully separated, and the fertilizer granules are uneven in size when packed, which makes it easy for the dealer to reduce the price when receiving the goods, thus reducing the profit space of the product in the long run.

Insufficient Throughput Causes Continuous Material Backlog at Feed Port

Small-size mini rotary screener holds limited material volume. When the upstream granulator discharges materials nonstop, piles of raw materials build up at the feed inlet. Factories have to assign fixed workers to shovel materials every shift, and the labor cost tied to this low-capacity rotary screener can never be reduced.

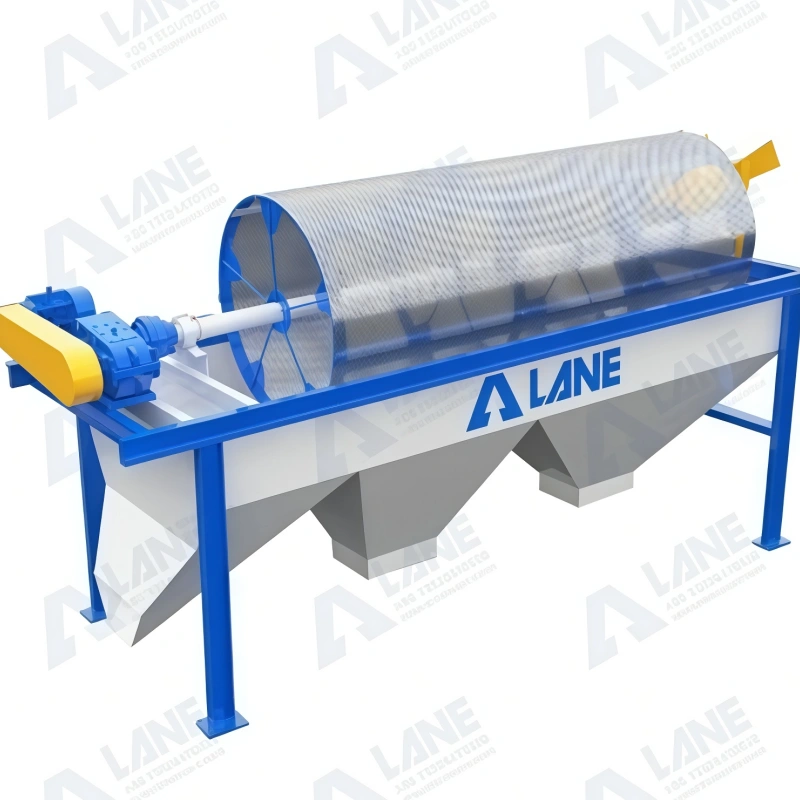

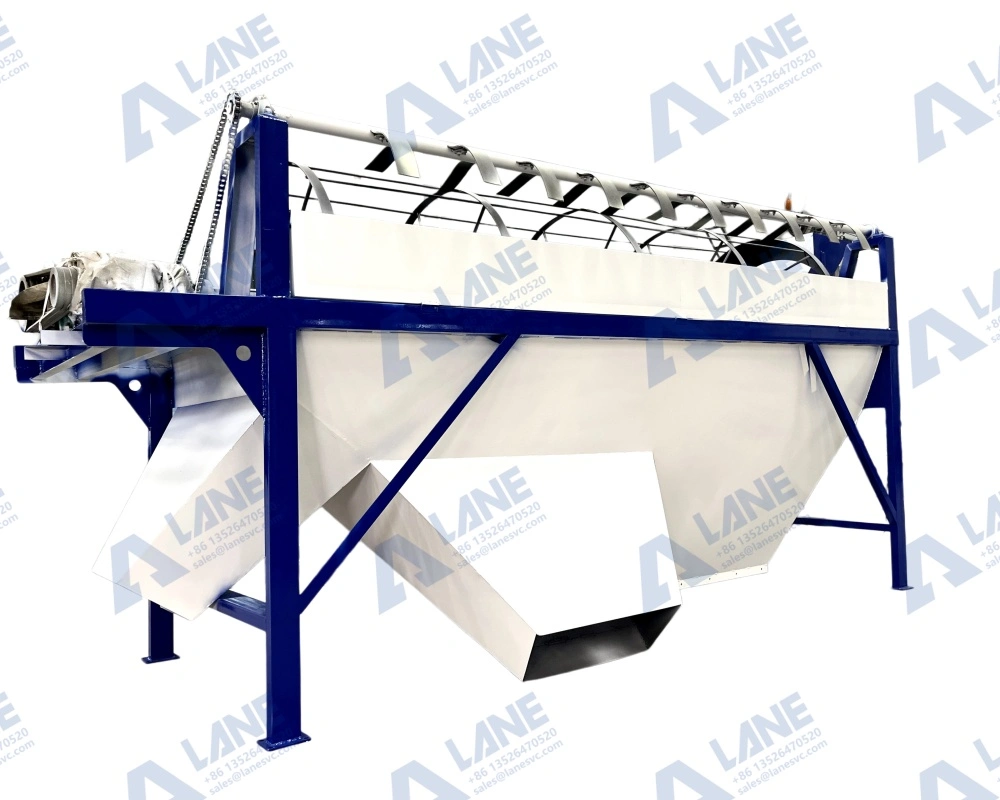

Core Structural Advantages of Inclined Self-Cleaning Rotary Screener Optimizing Organic Fertilizer Granule Sorting

• 2°-3° Gentle Tilt Realizes 3-Stage Separation in One Pass

The whole machine is set at a gentle slope of 2°-3°, and the material rolls slowly forward with the drum body. The different hole diameter rotary screener screen automatically distinguishes between large chunks of return material, qualified particles, and ultra-fine powder. One process realizes the diversion of three types of materials, without needing to process them separately.

• H3: Built-In Reciprocating Comb Assembly Cleans Mesh Automatically During Operation

The reciprocating rotary screener screen in the barrel is equipped with a reciprocating rotary screener screen, which continuously removes the wet material adhering to the rotary screener mesh during the operation of the equipment. The screening efficiency will not decline with the production time, and the quality of the output will be stable throughout the day.

• H3: Split Modular Design Greatly Reduces Daily Maintenance Time

The reducer, drum, and screen frame are all independently disassembled, and the damaged screen can be replaced without moving the entire machine. Ordinary operators can complete the replacement with simple tools, greatly reducing the downtime for equipment maintenance and repair.

• H3: Interchangeable Spliced Mesh Adapts Multiple Fertilizer Standards

The drum body rotary screener plate adopts a seamless design, and the corresponding hole diameter can be replaced according to the different particle size requirements of organic fertilizer d compound fertilizer. A single device can flexibly adapt to multiple finished product production standards.

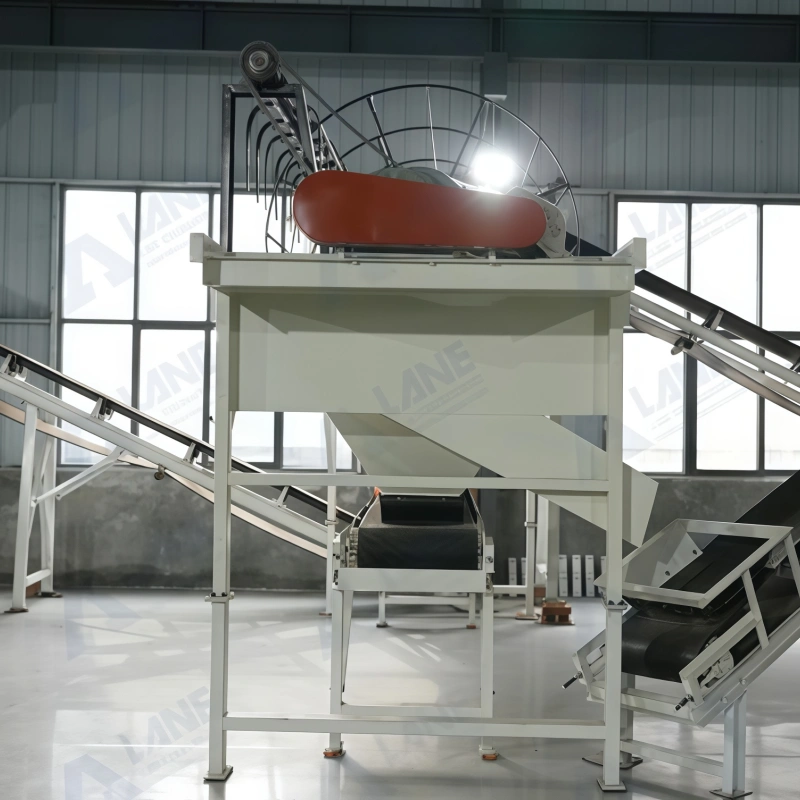

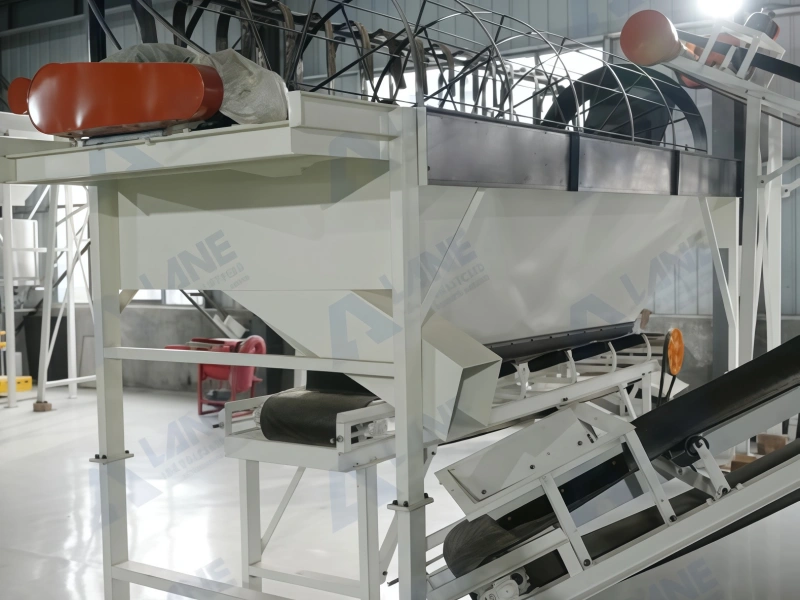

Complete Material Circulation Flow Inside Self-Cleaning Rotary Screener for Organic Fertilizer Granule Sorting

Mixed Granules Feed Evenly to Avoid Instant Blockage at Inlet

After drying, the lump, standard grain, and fine powder mixture are evenly fed into the upper end of the drum at a uniform speed. The feed flow rate is uniform, and there will be no sudden accumulation of a large amount of material blocking the drum mouth

Layered Screening Separates Three Types of Materials Automatically

The material moves slowly in front of the drum, and the lumps are returned to the granulator from the tail of the drum. The standard particles and fine powder are separated from the middle and rear sections of the screen, respectively, and fall into independent collection hoppers. The automatic diversion does not require manual sorting.

Synchronized Self-Cleaning Structure Maintains Permanent Mesh Smoothness

During the operation of the equipment, the screen cleaning mechanism works in synchronization, continuously peeling off the wet debris embedded in the mesh holes, avoiding the problem of slowing down and mixing powder from the source, and the uniformity of the finished product is always stable.

Sorted Materials Flow to Corresponding Production Links Automatically

The agglomeration reflux granulation process undergoes secondary processing, standard granules are directly conveyed to packaging equipment, fine powder is uniformly collected and returned to the raw material, and the entire process is closed-loop circulation, with no material waste.

Full Model Parameter List with Hourly Capacity

• LAS-0.82M & LAS-0.83M

This small-spec self-cleaning rotary screener has a drum diameter of 0.8 meters and drum length of 2/3 meters, with hourly output of 1-3 tons, 3kw motor and 22r/min rotation speed. Small family fertilizer workshops that run low-volume separation mostly choose this compact rotary screener model.

• LAS-13M & LAS-1.24M

As mainstream medium-size self-cleaning rotary screener, its drum diameter reaches 1/1.2 meters, with hourly throughput of 2-5 tons. Most standard medium fertilizer factories install this rotary screener to support stable daily separation work.

• LAS-1.54M & LAS-1.55M

Large-scale fertilizer processing plants with high daily output adopt LAS-1.5 series self-cleaning rotary screener. Its 1.5m wide drum and 4-5m length support continuous high-volume separation, and the matched 4/5.5kw power ensures stable operation of this heavy-duty rotary screener all day long.

Wide Applicable Range of Sorting Raw Materials

• Special Materials for Fertilizer Production

Fermented manure granules, decomposed straw granules, finished compound fertilizer, granule return material lumps, fertilizer ultra-fine recovery powder, dry and wet semi-finished products can be screened stably.

• General Industrial Bulk Solids

Coal fines, building sand and gravel, metallurgical slag, dry and wet chemical block powder, one device meets the screening needs of multiple industries.

Long-Term Operation Benefits for Medium & Small Fertilizer Plants

1. Large Inner Drum Space Matches Continuous Granulator Discharge

The internal storage space of the drum is sufficient, which can completely match the continuous output speed of the two-in-one granulator, and no one needs to dig out the material at a fixed point, thus simplifying the fixed labor position.

2. Built-In Continuous Self-Cleaning Eliminates Frequent Line Shutdowns

There is no need to stop the production line to clean the screen at regular intervals, and the production line can run continuously throughout the day, avoiding the loss of production capacity caused by downtime, and at the same time reducing the cost of labor to clear the screen.

3. Three-Way Separation on Single Machine Saves Workshop Floor Space

No need for multiple screens to be arranged in series in front and back, small and medium-sized compact plants can smoothly arrange the drying-screening-packaging entire production line.

4. Low-Speed Deceleration Drive Controls Long-Term Power Consumption

The low speed of the reducer drives the drum to rotate, the whole machine load is stable, and the monthly electricity bill expenditure is significantly reduced compared with the multi-unit series vibrating screen.

5. Detachable Consumables Lower On-Site Maintenance Threshold

The screen and power components can be disassembled and replaced separately, without the need for professional maintenance personnel to be present. The daily maintenance of the workshop is simple, reducing the maintenance cost of the equipment.

Reasons Why Most Fertilizer Manufacturers Choose Our Factory

Self-Developed Solid Factory with Thickened Durable Raw Materials

We have our own riveting and welding workshop, the cylindrical body is uniformly thickened with wear-resistant steel, the rotary screener plate is made of thickened wear-resistant plate, the core parts are self-processed without outsourcing, and the service life of the whole machine is 30% higher than that of ordinary models on the market, and the frequency of replacement parts is lower when used for a long time. Each device is tested with materials for 48 hours before leaving the factory, and factory defects are checked in advance. It can be put into production as soon as it arrives at the factory.

Free Raw Material Test Screening & Custom Production Line Layout

Before sales, you can send your own manure and straw raw materials to the factory for free trial screening, and customize the screen hole specifications according to the dryness and particle requirements of the material; The technical team will provide a complete layout drawing of the production line free of charge, taking into account the length and width of the factory and the production capacity of the granulator, and will not blindly recommend large-tonnage equipment to help customers reduce the budget for preliminary procurement and site renovation.

One-Stop Full-Cycle After-Sales Support Without Multi-Supplier Communication

Pre-installation is completed before the equipment is shipped, and online video instructions for installation are provided for small models; Large and medium-sized production lines are arranged for engineers to come to the door for debugging, and the entire process of screening, maintenance, and fault diagnosis is trained by hand-in-hand.7×24 hours technical hotline online response, 48 hours on-site inspection in major regions of the country, original factory screen mesh and comb accessories are always in stock, orders are shipped quickly.

Complete Matching Series for Full Organic Fertilizer Production Line

In addition to the roller screening equipment, synchronous supply of granulator, the complete series of fertilizer equipment, including turner, crusher, and dryer, has unified design and interlocking parameters for the entire production line. The output and input speed of the equipment are perfectly matched, and there will be no accumulation of materials in the front and rear processes. Unified after-sales service will be provided later, which will save the trouble of communication with multiple manufacturers.

Regular Customer Return Visit & Free Process Optimization Scheme

After the delivery of the equipment, quarterly telephone and door-to-door follow-up visits will be conducted to record the pain points of the screening operation. For the high humidity and high viscosity material conditions in the factory, free screening screen modification and speed adjustment optimization plans will be provided to help the factory continuously improve the appearance of finished products and reduce raw material losses.

Practical Matching Suggestions for Fertilizer Production Lines

Stable granule sorting is the core transition process between drying and packaging. The problems of traditional screening equipment such as blocking the screen, mixing the material, and limited capacity will continue to lower the overall revenue of the entire production line. The inclined drum with the built-in self-cleaning structure reduces all kinds of hidden losses from the details of daily operations.

Before purchasing, you can send raw material samples for testing, match the corresponding model with the production capacity and site size of the factory, obtain the layout plan of the workshop and the reference video of the on-site screening at the same time, and rely on the complete set of equipment and perfect after-sales service of the manufacturer to build a stable and low-loss fertilizer sorting line.

If you are facing frequent screen clogging, high labor costs, or unstable product quality, we are here to help. Our team offers free raw material testing, customized model selection, and production line layout support. Contact us today to find the right screening solution for your fertilizer plant.
