10-20T/H BB Fertilizer Automatic Production Line: Solve Nutrient Stratification & High Labor Cost Pain Points
Tons of Troubles from Manual Mixing & Old Lines? Lane BB Blending Equipment Stabilizes Quality & Boost Profits
If you are still manually mixing various fertilizer raw materials, or still using old production lines to produce BB fertilizer. Each batch of fertilizer will have serious nutrient stratification problems, directly affecting crop output.
Finished products with unbalanced nutrients will lead to a large number of refunds and after-sales complains, continuous loss of dealer trust, damage to brand reputation, and long-term shrinkage of factory profits.
Henan Lane Heavy Industry has launched a 10-20 T/H BB fertilizer automatic production line, which can process various single-element fertilizers into high-performance blended fertilizers with uniform ratio and stable quality.
What Is A BB Fertilizer Production Line & Why You Need to Replace Old Equipment
BB fertilizer production line, also known as bulk dry mixing blending equipment, relies on physical mixing of various nutrient raw materials, and the entire processing process has no chemical reaction, relying on the proportion to meet the fertilization needs of different crops.
The traditional granulation production line must be equipped with several high-power-consuming devices such as crushers, dryers, and cooling towers. The Lane BB fertilizer equipment directly eliminates this series of high-input, high-maintenance units.
The pre-granulated granular raw material can be directly mixed into the machine, and then transported to the packaging process after completion, without the need for high-cost drying fuel expenses or frequent maintenance of the granulating equipment.
Finished products feature uniform particle size, moisture below 2% and high particle strength, fully matching spreader and drip irrigation demands of growers.
Applicable Raw Materials & Multi-Scenario Uses of Lane BB Fertilizer Line
Full Compatibility with Various Raw Materials, No Caking or Bridging
The components of BB fertilizer include a variety of nutrients, such as nitrogen, phosphorus, potassium, and other auxiliary components. Specific ingredients include but are not limited to the following:
- Urea: a nitrogen source that contains high-purity nitrogen, is easily soluble in water, and can quickly provide plants with the nitrogen nutrition they need.
- Potassium Dihydrogen Phosphate (Potassium Dihydrogen Phosphate): phosphorus and potassium source, rich in phosphorus and potassium, can improve plant development and resistance performance.
- Potassium Sulfate: potassium source, rich in potassium, provides the necessary potassium required for promoting plant growth and fruiting.
- Ammonium Nitrate: nitrogen source, contains high concentration of nitrogen, can be quickly absorbed and utilized by plants.
- Potassium Nitrate: a source of nitrogen and potassium, containing nitrate nitrogen and potassium, which can promote plant growth and enhance resistance to disease.
- Calcium Nitrate: nitrogen source, containing nitrate nitrogen and calcium element, can provide plants with the necessary nutrients and regulate the acid-base balance.
- Sodium Nitrate: nitrogen source, contains nitrate nitrogen, can be fully absorbed and utilized by plants.
The above are the common BB fertilizer raw materials, according to different product formulations and needs, other trace elements and auxiliary ingredients can also be added, such as amino acids, organic matter, microbial bactericides, etc., in order to further improve the fertilizer effect and nutritional balance!
Wide Application Scope for Finished BB Fertilizer
BB blended fertilizer is not only supplied to large-scale grain cultivation bases, but can also be processed into general compound fertilizer, foliar fertilizer, drip irrigation water fertilizer integrated special fertilizer, and can also be mixed with a small amount of chemical auxiliary materials and feed additives, broadening business channels.
It is suitable for corn and soybean bases, greenhouse vegetables, and various fruit orchards. The equipment supports one-click switching of formulas, quickly matches soil test data and market demand, and flexibly responds to various orders.

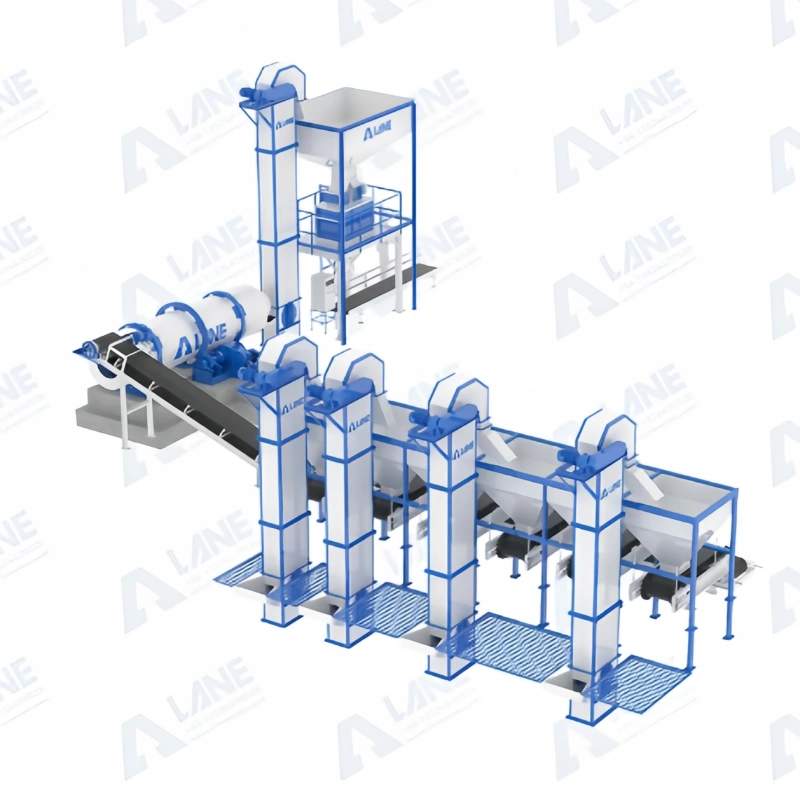

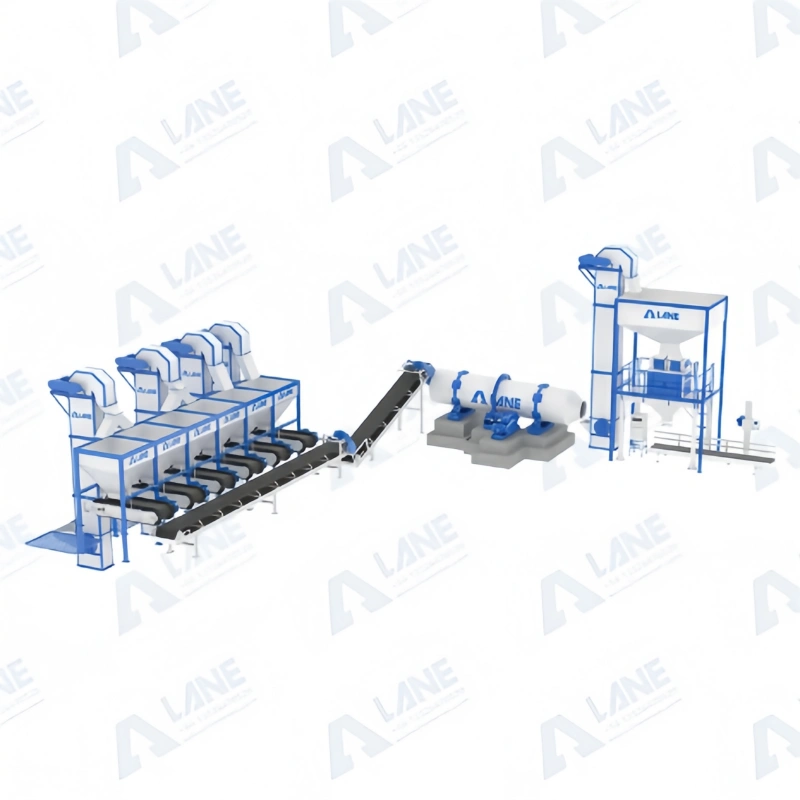

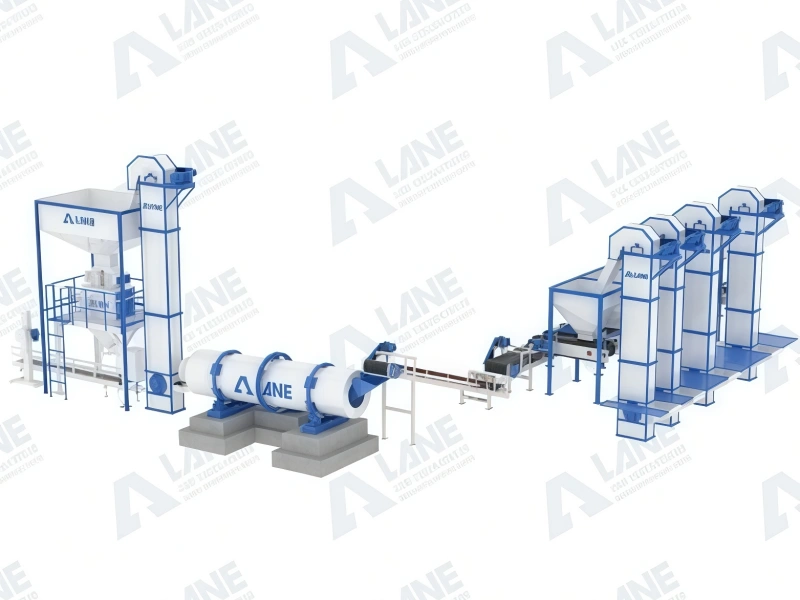

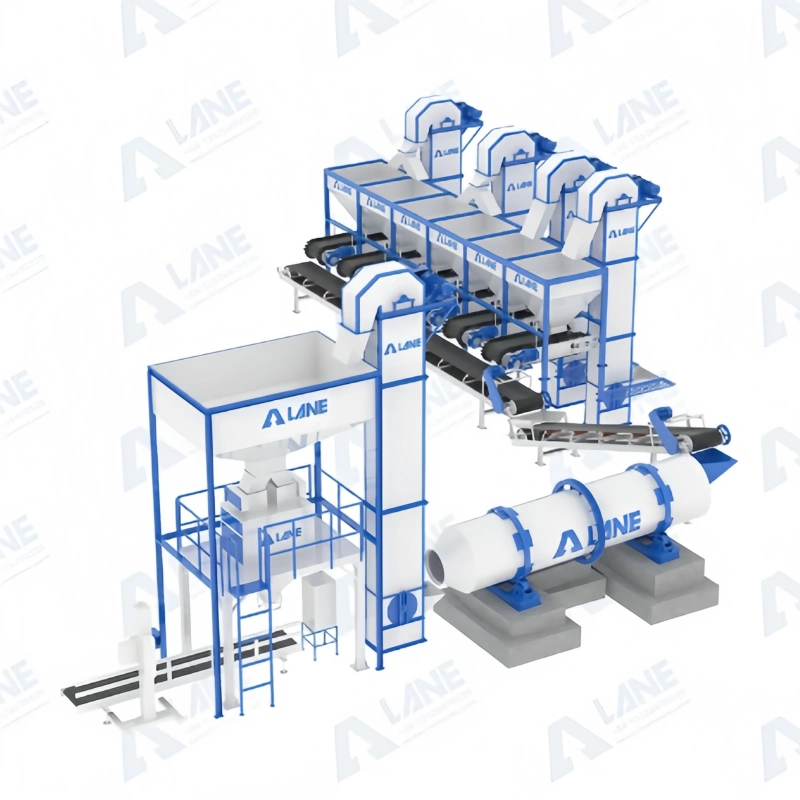

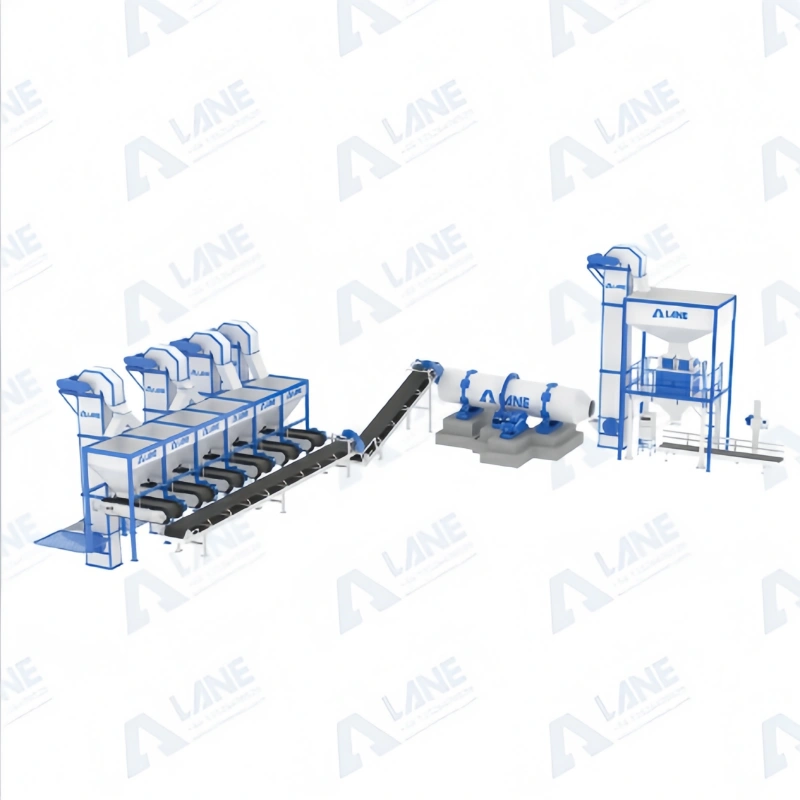

Step-By-Step Working Flow of Lane 10-20T/H BB Fertilizer Line
-
Step 1 Precision Automatic Batching — Core Unit of The Whole Line
Raw materials fall from silos to dynamic batching machines; static models are optional for small-batch special fertilizer.
Equipped with load cells and PLC control, the batching error is locked within ≤0.1% to eliminate manual weighing guesswork.
Weighed materials are transported to pre-mixers via belt conveyors, cutting raw material loss by 15% compared with manual operation.

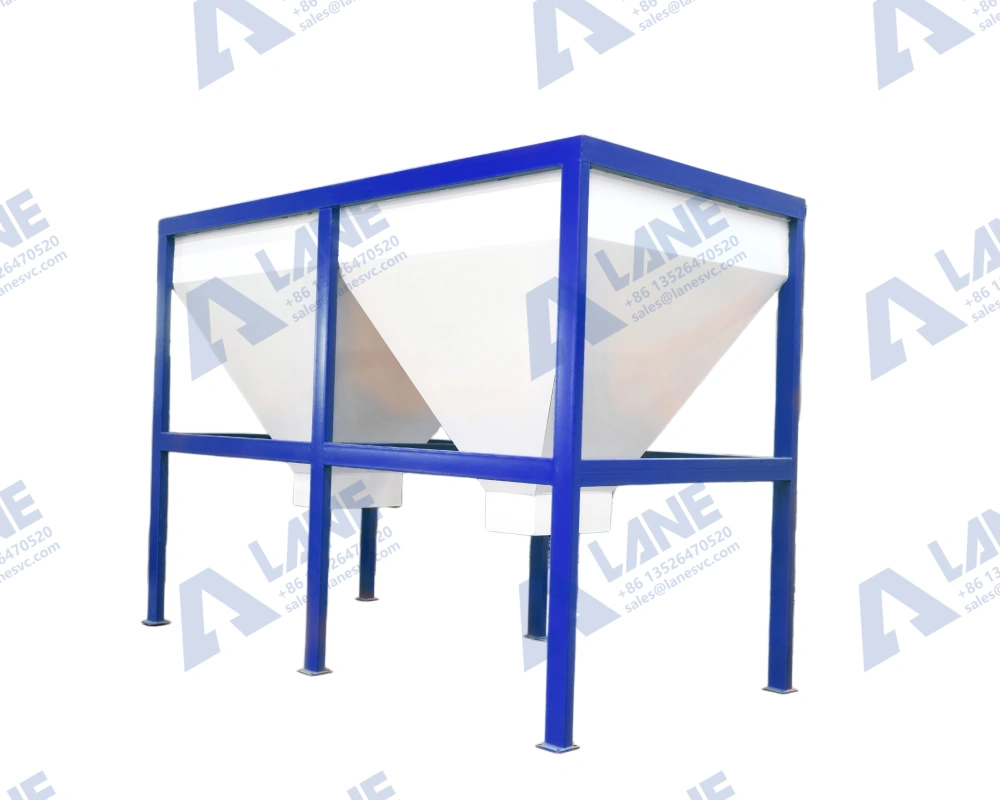

Fertilizer Batching Machine For Sale
| Model | Silo Size(m) | Silo Volume(m³) | Belt Width(mm) | Belt Length(mm) | Power(kw) |
|---|---|---|---|---|---|
| LADP-2 According to the number of silos | 1*1 | 3 | 500 | 2000 | 1.1 |
| LADP-2 According to the number of silos | 1.2*1.2 | 3 | 500 | 2000 | 1.1 |
| LADP-2 According to the number of silos | 1.5*1.5 | 4 | 500 | 3000 | 1.1 |
| LADP-2 According to the number of silos | 1.8*1.8 | 5 | 600 | 3000 | 1.1 |
| LADP-2 According to the number of silos | 2*2 | 5 | 800 | 3000 | 1.1 |
-
Step 2 Uniform Roller Mixing Without Nutrient Striping
Materials go into patented roller BB mixers; horizontal mixers are available for intermittent production.
Ordinary mixing equipment is prone to stratification due to the difference in material density, and the drum operation forms an irregular three-dimensional material curtain, which fully integrates the different light and heavy particle raw materials.
Continuous output reaches 30-40T/H; anti-corrosion liners can be customized for acidic raw materials to avoid nutrient stripes in farmland.
BB Fertilizer Mixing Equipment For Sale
| Model | LAFB-1000 | LAFB-2000 |
|---|---|---|
| Drum Volume | 1000 | 2000 |
| Loading capacity(kg/batch) | 300 | 600 |
| Power(KW) | 3 | 5.5 |
| Speed(rpm) | Continuously adjustable | Continuously adjustable |
| Production capacity(t/h) | 3-5 | 8-10 |
-
Step 3: High-speed, dust-free automatic packaging, one person can supervise the entire workstation
The mixed finished fertilizer is transported to the integrated automatic packaging machine, which can complete the quantitative packaging operation of 8-12 bags per minute.
Support 10kg to 50kg full specification packaging bags, woven bags, laminated bags, ton bags are all suitable, packaging measurement error ≤ ± 0.2%.
Built-in dust removal and automatic coding realize full batch traceability, and only one worker is needed for the whole packaging station.

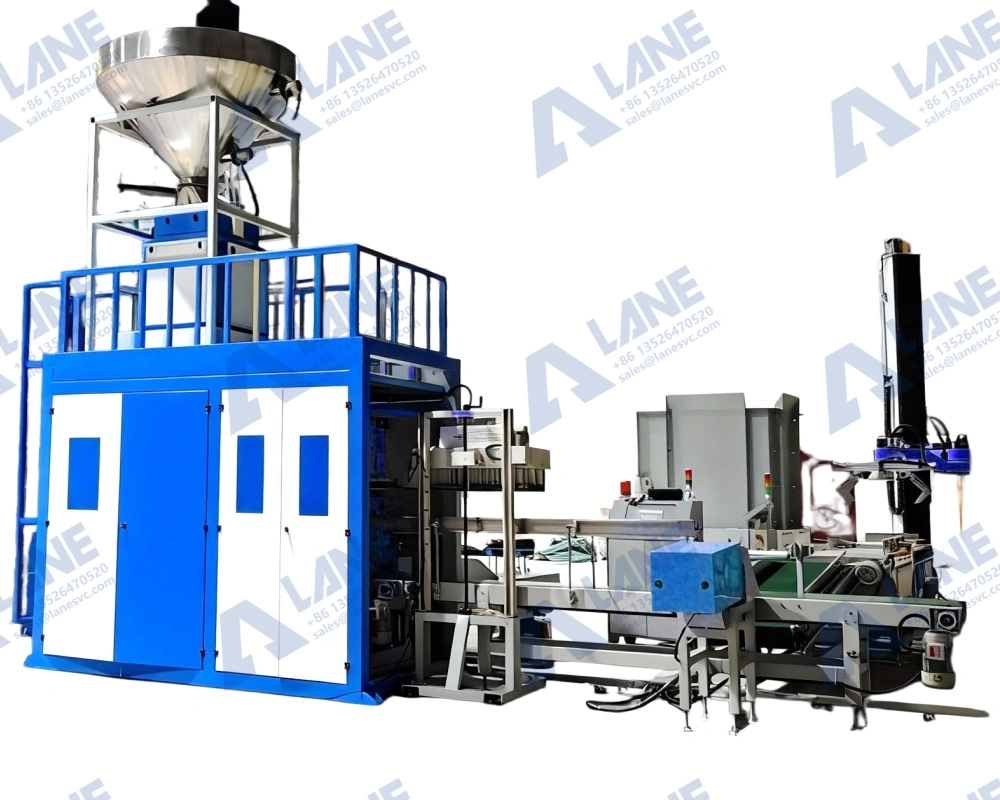

Automatic Packaging Machine For Sale
| Technical Parameter | Specification |
|---|---|
| Packaging Speed | 20–50 bags/minute |
| Packaging Weight Range | 10 grams–50 kilograms |
| Weighing Accuracy | ±0.2%–±0.5% |
| Applicable Packaging Materials | Plastic bags, woven bags, composite film bags, etc. |
| Feeding Method | Vibrating feeder, screw feeder, belt feeder |
| Power Supply Requirement | AC220V/AC380V (three-phase four-wire system) |
| Power Consumption | 1–5KW |
| Air Source Requirement | Pressure: 0.4–0.8MPa; Air consumption: 0.6m³/min |
| Equipment Material | Contact parts made of 304/316 stainless steel |
-
Step 4 Movable Belt Conveyors for Stable Material Transportation
Movable belt conveyors connect all procedures, wear-resistant against hard fertilizer granules.
Conveying angles are adjustable to fit compact small workshops with low power consumption and easy maintenance.
Materials move stably from silos to finished product piles with low breakdown frequency.

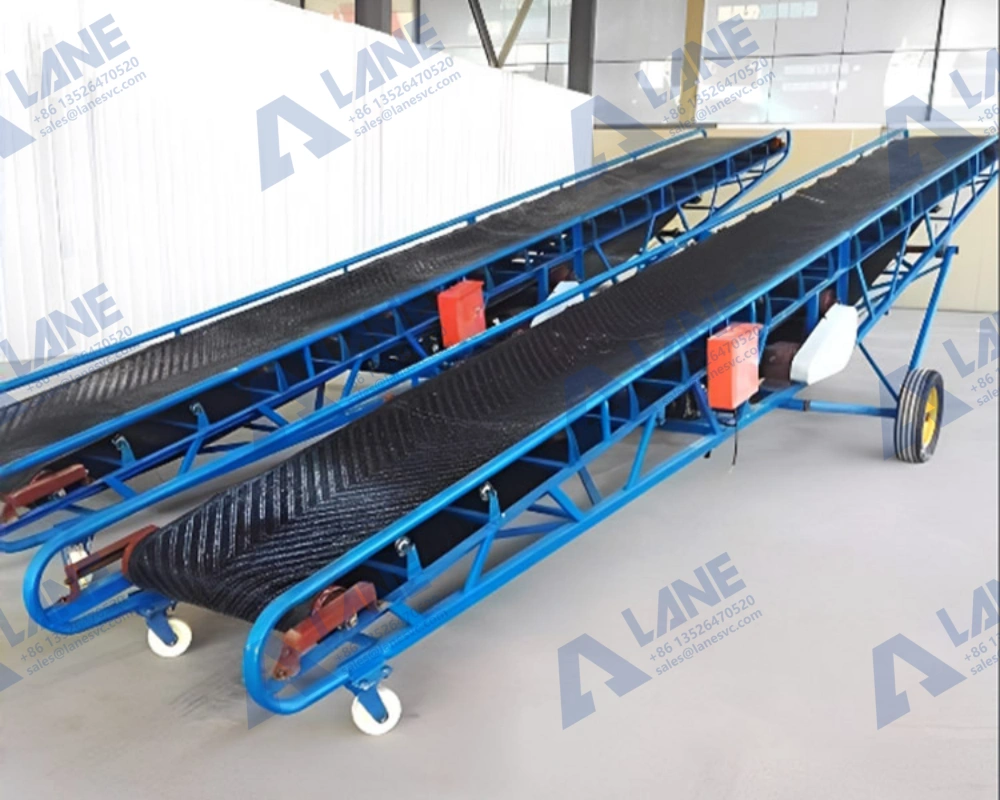

Belt Conveyor For Sale
| Model | Capacity(tph) | Width(mm) | Speed(m/s) |
|---|---|---|---|
| B500 | 30-60 | 680 | 1.25-2.0 |
| B600 | 50-80 | 780 | 1.25-2.0 |
| B650 | 70-100 | 830 | 1.25-2.0 |
| B800 | 90-120 | 980 | 1.25-2.0 |
| B1000 | 110-140 | 1180 | 1.25-2.0 |
Four Core Advantages of Lane BB Line Superior to Competitors
There are many BB fertilizer equipment manufacturers on the market, but all of Lane’s equipment are designed with the core of helping factories improve profitability, and its four advantages are very prominent.
1. Lower Overall Production Cost & Faster Payback
The traditional granulation line is equipped with multiple high-power power-consuming equipment, and it also needs to be regularly maintained by specialized personnel, resulting in high overall expenses.
The Lane BB fertilizer production line does not need a complete set of equipment for granulation, drying and cooling, and the overall energy consumption of the whole machine is reduced by 30%, and the initial
equipment purchase cost is directly halved.
2. One-Click Fast Formula Switch to Follow Market Trends
Market demand for fertilizers changes rapidly, requiring frequent monthly formula adjustments. Operators can complete an entire recipe change on the touchscreen within 5 minutes, without needing to empty the entire production line or incurring transitional waste.
We can reliably produce urgent orders that others struggle to handle, and customized blended fertilizers allow us to achieve higher product margins.
3. Stable Product Quality to Eliminate Customer Complaints
The particle size is uniform, and the distribution of nutrients in the field is uniform, so there will be no local burning of seedlings or local lack of seedlings in the field.
The water content of fertilizer is less than 2%, it is not easy to form lumps in long-term storage, which greatly reduces the return disputes of distributors.
The particle hardness is high, and it is not easy to break during long-distance transportation.
4. Complete Whole-Line After-Sales Support
We don’t just deliver equipment, also provide comprehensive services such as factory planning, on-site installation, and hands-on operation for workers.
The core components of the mixer and batching machine enjoy a five-year warranty for the entire machine, and lifetime free remote online technical consultation and guidance.
Spare parts from the original factory warehouse in Henan can be shipped to all over the world within 48 hours.
In the later stage, the production capacity needs to be upgraded to 30 tons per hour. It is not necessary to replace the entire set, and the expansion can be completed by directly modifying the existing production line.
Get Free Custom Quotation for BB Fertilizer Line Upgrade
Whether you are eliminating old and inefficient equipment, entering the high-profit blended fertilizer track, or setting up a new fertilizer processing plant, the Lane 10-20 ton BB fertilizer automatic production line is the optimal choice for efficiency and revenue increase.
We have completed the equipment landing for more than 30 fertilizer factories in Asia, Africa, and South America, achieving cost reduction and production increase. Now contact the business team to get a free, non-bundled, exclusive quotation plan.
We will provide a detailed equipment list and 3D layout drawings of the factory within 24 hours after being informed of the target production capacity, commonly used raw materials, factory size, and customization requirements. Don’t continue to lose money due to uneven fertilizer batches, upgrade the Lane BB fertilizer production line, contact us, and seize the local agricultural chemical market share!
