Many large-scale chicken farms will process their own chicken manure into commercial organic fertilizer. After aerobic composting fermentation, chicken manure will form a sticky and lumpy state, and these lumpy materials cannot be directly fed into the subsequent granulation process for processing and use.

Most equipment procurement manufacturers only refer to the theoretical parameters marked on the equipment sample, but ignore a core issue: whether the equipment can be adapted to high humidity and high fiber fermentation chicken manure to achieve long-term stable operation.

We have sorted out the first-line production data and on-machine feedback of dozens of organic fertilizer processing plants, combined with real working conditions to share the actual operation effect of the chain ring crusher, and help manufacturers accurately judge whether this equipment is suitable for their own chicken manure processing line.

Common Processing Troubles When Crushing Fermented Chicken Manure

In order to choose the right crushing equipment, you must first understand the material characteristics of fermented chicken manure. The root cause of most production line stoppages is that the structure of the equipment does not match the properties of the chicken manure material.

1. Frequent Blocking Caused by High Material Humidity

The water content of fermented chicken manure, which is normally matured, is generally maintained between 35% and 55%. The traditional blade shredder relies on the built-in sieve to complete the shredding operation, and the wet chicken manure is very easy to adhere to the sieve and the inner wall of the equipment chamber, causing the chamber to be blocked quickly. The operator needs to repeatedly stop the machine to clean up the accumulated material, which seriously disrupts the production rhythm.

2. Uneven Particle Size After Crushing

The fermented chicken manure is mixed with broken straw, manure balls of different sizes, and organic fine powder. Ordinary crushing equipment can only crush large pieces of material, and the output material is mixed with coarse and fine materials, including coarse slag and ultra-fine powder. Uneven particle size of the material will directly reduce the qualified rate of particle forming in the later granulation process.

3. Fast Wear of Standard Vulnerable Parts

Moist chicken manure material continues to wash and hit the equipment blade and screen, such core accessories will show serious wear in a short period of time. The factory needs to frequently purchase replacement parts, which not only increases the cost of consumables, but also causes unnecessary production losses due to repeated shutdowns for maintenance.

4. Hardened Residues Left Inside Crushing Cavity

There are many blind spots in the cavity of the traditional crushing equipment. The fine chicken manure powder is easy to adhere to the dead corners and harden into lumps after drying. When the equipment restarts production, the hardened lump will fall off and be mixed with the new material, directly destroying the overall quality of the finished organic fertilizer.

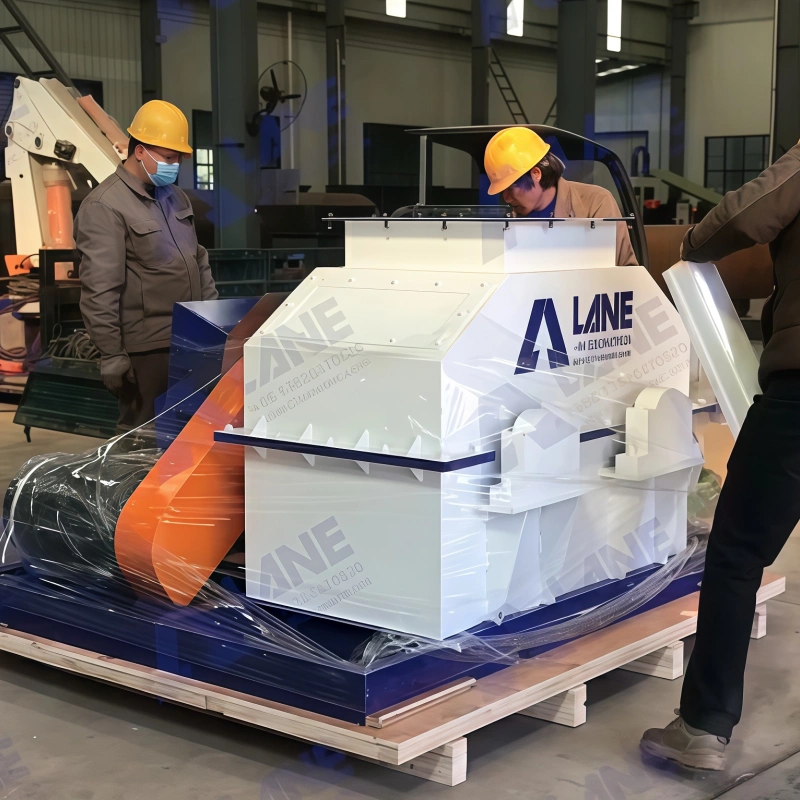

On-Site Working Performance of Our Chain Crusher for Fermented Chicken Manure

Different from the working principle of traditional blade-type crushing equipment, the chain link crusher in our factory adopts a flexible impact crushing structure. In response to the characteristics of fermented chicken manure with high viscosity, high humidity, and high fiber content, we have optimized the equipment speed and chain arrangement method, and after long-term continuous production in many workshops, the equipment operation state is stable and reliable.

Strong Anti-Blocking Capacity for Damp Chicken Manure

There are no fixed cutting blades or sieve structures inside the chain link crusher of our factory, and it relies on multiple groups of high-speed rotating chains to continuously beat and disperse the material lumps. The problem of material sticking and machine blockage can be eliminated from the structural root, and the fermented chicken manure with water content of 30% to 55% can be continuously processed without frequent stoppage to clear blockage.

Balanced Discharged Fineness to Support Subsequent Production

The output particle size is uniform, and it is suitable for the production process at the back end.

In the continuous production process on-site, the high-speed chain can completely break the chicken manure lumps and finely grind the straw fibers. The output of the equipment is loose and fine, and the particle size of most of the materials can be controlled stably within 3 mm, which fully meets the standard for the use of raw materials for organic fertilizer mixing and granulation.

Inner Self-Cleaning Effect Reduces Hardened Residues

The high-speed rotating chain will form a circulating airflow inside the crushing chamber, and rely on centrifugal force to automatically peel off the fine powder material adhering to the inner wall. The problem of material accumulation in the dead corners of the cavity has been greatly improved, and it is basically not possible for hardened residual material to be mixed with new material, effectively ensuring the purity of the finished product.

Lower Wear Rate Cuts Long-Term Maintenance Work

The flexible impact operation mode avoids the hard friction and wear of materials and core accessories. The service life of the chain component is far better than that of the ordinary cutting blade, and the workshop does not need to stop frequently to replace the accessories, which greatly saves the purchase cost of consumables and the cost of manual operation and maintenance.

Field Test Data: Chain Crusher Compared with Ordinary Crushing Equipment

The production data collected on-site in the workshop is the most intuitive basis to reflect the gap in equipment performance. We have followed the operation of the fermentation chicken manure crushing process for several months, and the chain link crusher has obvious advantages in all aspects of operation compared with traditional crushing equipment.

Comparison of Continuous Operation Stability

When processing high-moisture fermented chicken manure, the ordinary crusher needs to stop and clear the blockage every 2 to 3 hours, and the effective operation rate is less than 70%. Our chain link crusher can run continuously for more than 12 hours without blocking, and the effective operation rate of the equipment is increased to more than 95%, greatly improving the overall production capacity of the production line.

Difference in Qualified Raw Material Ratio

After the material is processed by the ordinary crusher, there are a lot of coarse lumps, and the proportion of qualified material is only about 80%. The chain ring crusher has uniform and stable crushing particle size, which can increase the subsequent granulation and molding rate by 15% to 20%, and greatly reduce the output of unqualified coarse materials.

Gap in Annual Long-Term Running Expense

Traditional shredding equipment with blades and sieves consumes a large amount of wear parts every year and continuously generates high maintenance costs. The internal structure of the chain link crusher is simple and the wear and tear is very low, which can reduce the hidden maintenance expenses and production loss of fertilizer workshop for many years.

Practical Operating Skills to Optimize Chain Crusher Working Performance

High-quality equipment performance must be matched with standardized operation methods to maximize its value. The simple standardized operation process can ensure the continuous and stable crushing effect of chicken manure in the chain link crusher, and avoid the fault problems caused by manual operation.

>  Keep Uniform Feeding Speed

The operator needs to maintain a uniform and steady feeding rhythm, as a large amount of material is fed in a short period of time, which will cause the cavity to accumulate material in an instant, break the crushing balance, and cause uneven crushing of the material. Stable feeding speed is the core key to ensure uniform particle size.

> Remove Hard Impurities Before Feeding

Before the operation, it is necessary to manually screen out the hard debris such as stones and iron shavings in the fermented chicken manure. Such hard objects will violently collide with the chain components, causing damage and deformation of the accessories, and greatly shortening the service life of the core components of the equipment.

> Carry Out Weekly Simple Inspection Work

Check the tightness and surface wear of the chain regularly every week, adjust the loose chain in time, and ensure that the impact force of each chain group is uniform. Simple daily inspection and maintenance can keep the equipment in the best crushing condition for a long time and reduce the probability of failure.

Practical Value of Chain Crusher on Fermented Chicken Manure Production Lines

Combined with the on-site application cases of hundreds of production lines, the chain link crusher has an irreplaceable advantage in the pre-treatment stage of fermented chicken manure, and has successfully solved many production problems that traditional crushing equipment cannot overcome.

This equipment not only improves the fineness and uniformity of the chicken manure raw material, laying a solid foundation for the subsequent mixing, granulation, and packaging processes, but also significantly reduces the frequent shutdown losses of the production line and reduces the daily operation and maintenance costs of small and medium-sized fertilizer workshops.

For small and medium-sized organic fertilizer production lines with chicken manure as raw material, selecting a suitable chain ring crusher is a key measure to ensure the long-term stability of finished product quality and improve the overall economic benefits of the production line.

For organic fertilizer producers using fermented chicken manure, choosing the right crusher directly impacts your entire production line. The chain crusher delivers superior performance — no frequent blockages, uniform output particle size, lower wear rates, and over 95% effective operating rate. Don’t let unsuitable equipment hold back your production. Contact LANE today to find the right chain crusher for your chicken manure processing needs.
