Why Is the Automatic Palletizer of Fertilizer Factory Better Than Manual Palletizer?

The automatic palletizer has now become the standard supporting equipment for the large-scale production line of organic fertilizer, compound fertilizer, cement and feed, replacing heavy manual packaging, reducing labor costs, and avoiding safety accidents caused by long-term heavy physical operation.

Whether you are a small fertilizer processing workshop or a large compound fertilizer production line with an output of 40 tons per hour, stable and efficient palletizing equipment directly determines the production capacity and shipping efficiency of the whole factory.

Core Demand of Fertilizer Bag Palletizing

Most of the fertilizer packaging bags are 25kg and 50kg heavy woven bags, which need to be flat and shaped, layered and regularized. The stacking structure should be adapted to long-distance transportation to prevent collapse.

Manual stacking cannot unify the palletizing mode, and the frequent loss of workers will cause uneven palletizing quality and serious loss of logistics links.

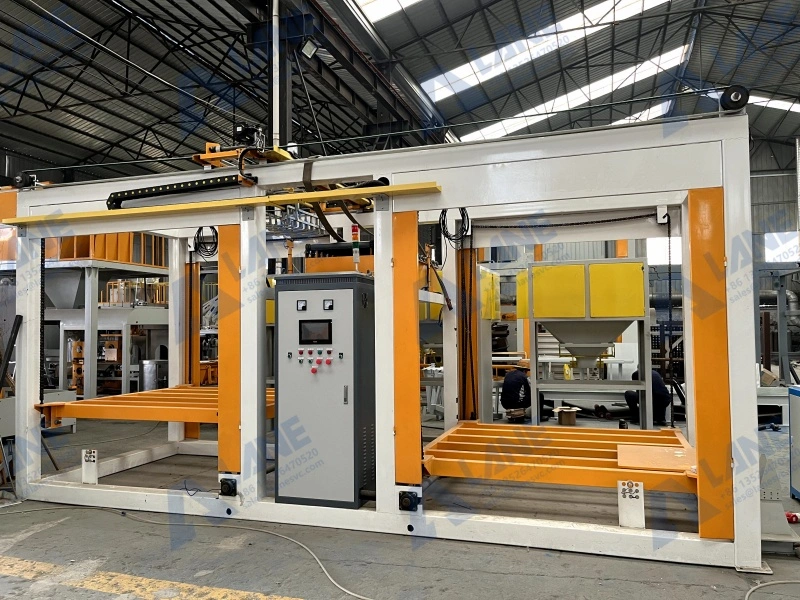

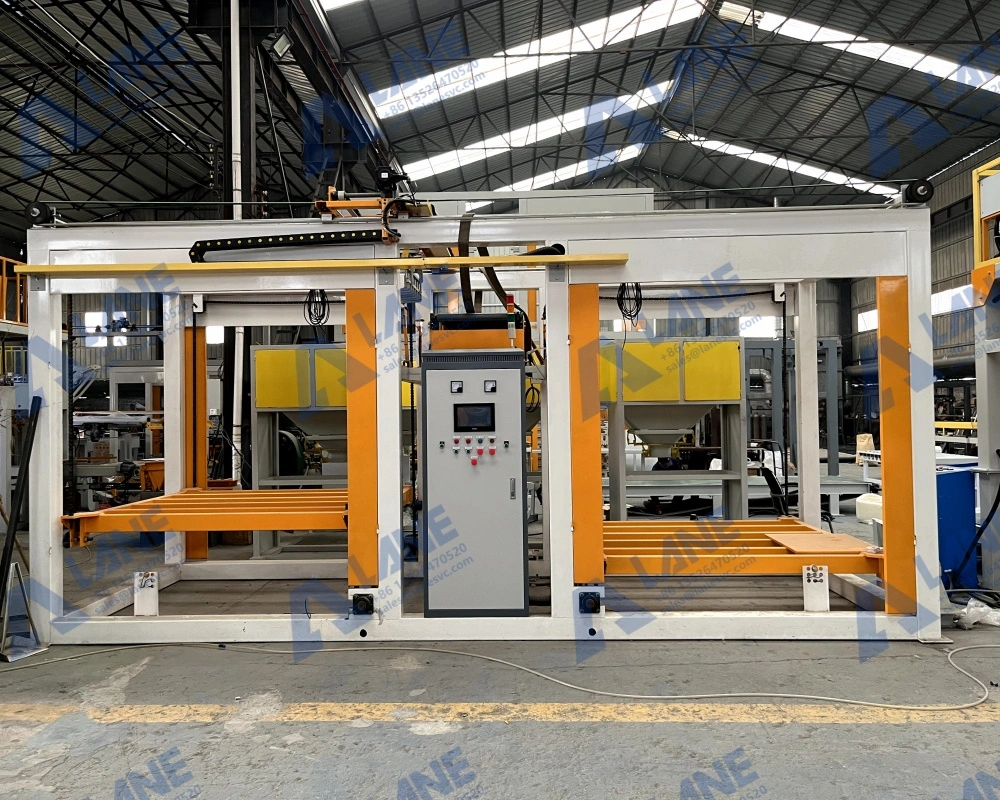

Full Introduction to High-Level Palletizer for Fertilizer

What Is High-Level Palletizer?

The high-level palletizer is a high-efficiency automatic palletizing equipment specially designed for single-specification and large-yield bagged materials. It is widely used in the fertilizer, cement and feed industries to transport packaging bags to high levels to complete flattening, H1: High-Level Palletizer Compared with Robotic Palletizer: Which One Is More Suitable for Your Fertilizer Production Line?

H2: 1. Why Is the Automatic Palletizer of Fertilizer Factory Better Than Manual Palletizer?

The automatic palletizer has now become the standard equipment for large-scale production lines of organic fertilizer, compound fertilizer, cement and feed, replacing heavy manual palletizing, reducing labor costs, and avoiding safety accidents caused by long-term heavy physical operation.

Whether you are a small fertilizer processing workshop or a large compound fertilizer production line with an output of 40 tons per hour, stable and efficient palletizing equipment directly determines the production capacity and shipping efficiency of the whole factory.

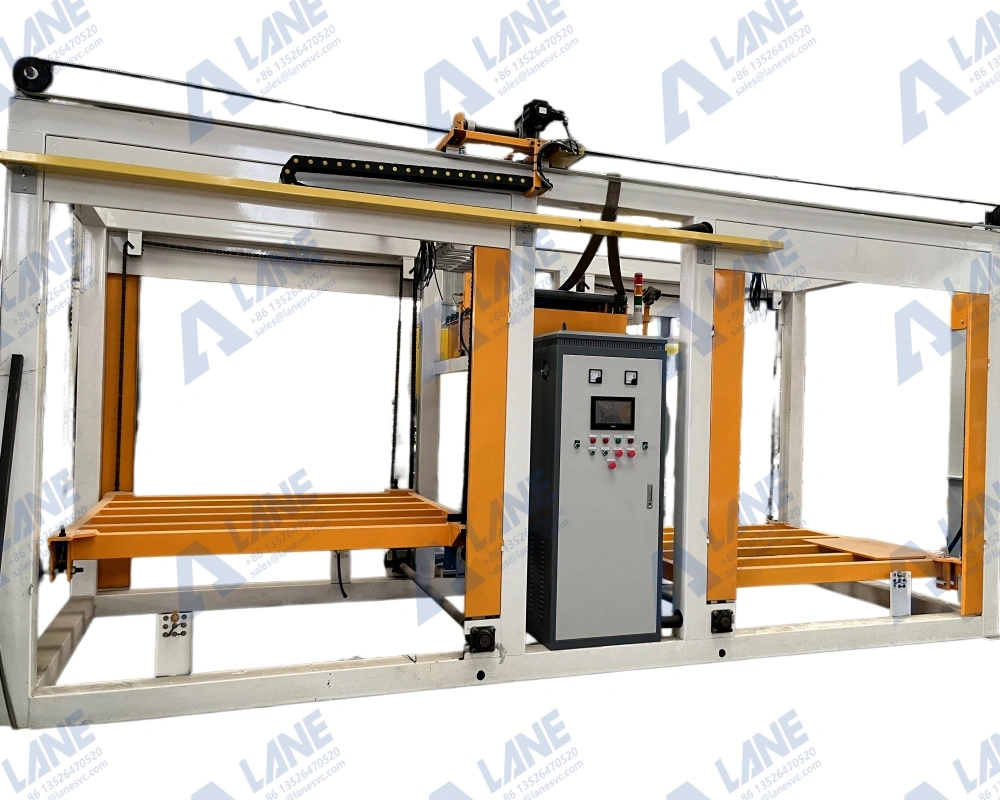

Core Components of High-Bay Palletizer

• Feed conveyor: directly connected to the packaging machine, continuously transport the fertilizer bag to the top of the equipment.
• Pressure bag transfer mechanism: compact the packaging bag, which can rotate 90° or 180° to change direction, to ensure that the bag surface is flat and easy to stack.
• Layer grouping system: combine multiple bags of fertilizer into a complete stacking layer, and support a variety of palletizing styles that are staggered and offset.
• Pushing system: smoothly pushes the whole layer of materials onto the pallet without destroying the stacking structure.
• Pallet storage and lifting mechanism: automatically supply empty pallets, and the lifting platform cooperates to complete layer-by-layer palletizing.
• Finished pallet conveyor: output palletizing to complete the whole stacking, which can be docked with winding machines and strapping machines.
• PLC touch screen control system: single-screen operation, automatic parameter adjustment, fault alarm.

 Standard Operating Flow of High-Level Palletizer

Step 1: The packaged fertilizer bag is raised to the high-level operation platform by the conveying equipment.

Step 2: The shaping equipment flattens the packaging bag, changes direction, and adjusts the posture as needed.

Step 3: Multi-bag fertilizer is grouped according to the set quantity to form a standard stack.

Step 4: The stacking mechanism pushes the whole layer of fertilizer onto the empty pallet.

Step 5: After completing each year, the pallet lifting platform drops one layer of height, and the operation is cycled until the whole stacking is completed.

Step 6: After palletizing is completed, the stack is automatically transported to the downstream wrapping and storage process.

Five Outstanding Advantages of Fertilizer High-Level Palletizer

1. Ultra-high palletizing capacity: 800-1500 bags per hour, perfectly suitable for large-scale fertilizer production lines.
2. Heavy-load stable mechanical structure: the main mechanical structure is suitable for heavy fertilizer bags of more than 10kg, and the failure rate is low for long-term continuous operation.
3. The stacking pattern is regular and collapse-resistant: the shaping layering system unifies the bag type, and the long-distance transportation stack is not easy to be loose.
4. Extremely cost-effective: the equipment investment cost is lower than that of the robot palletizing machine, and the return cycle is short.
5. Fully automated operation: automatic bag feeding, automatic palletizing, and automatic pallet changing, greatly reducing on-site labor.

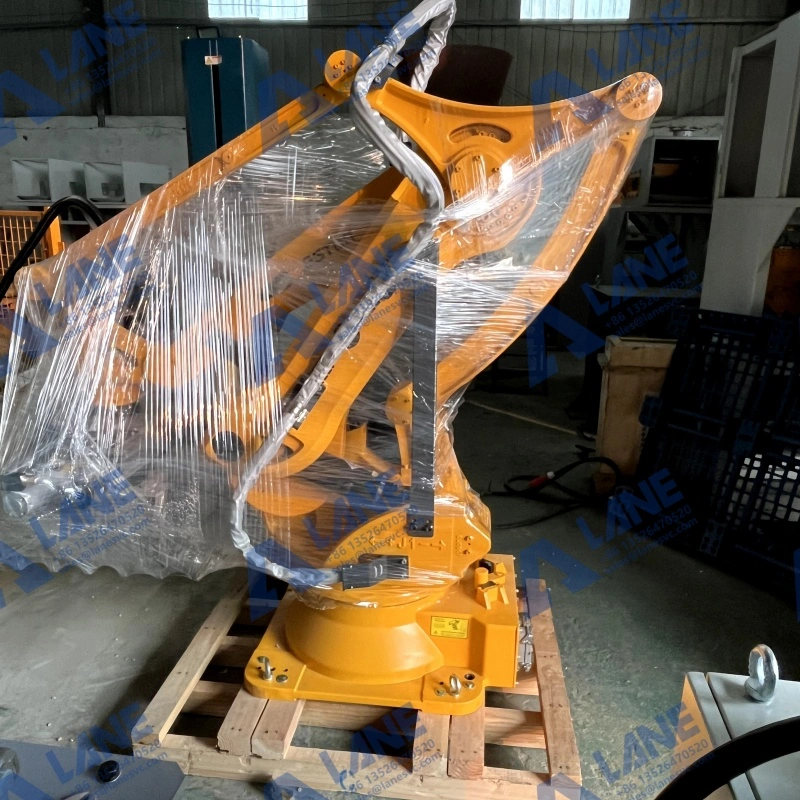

Robotic Palletizer: Flexible Multi-Specification Palletizing Solution

Definition & Application Scope of Robotic Palletizer

The Robotic Palletizer is an intelligent automatic stacking system based on industrial robotic arm technology. It is widely used in fertilizer, chemical, food and building materials industries. It relies on high-precision robots to grab packaging bags/cartons and put them on pallets according to the preset style.

Unlike high-level palletizers, which are designed for high-volume production of single-specification products, robotic palletizers can adapt to a variety of bag types and packaging specifications, which is suitable for factories with a variety of fertilizer categories.

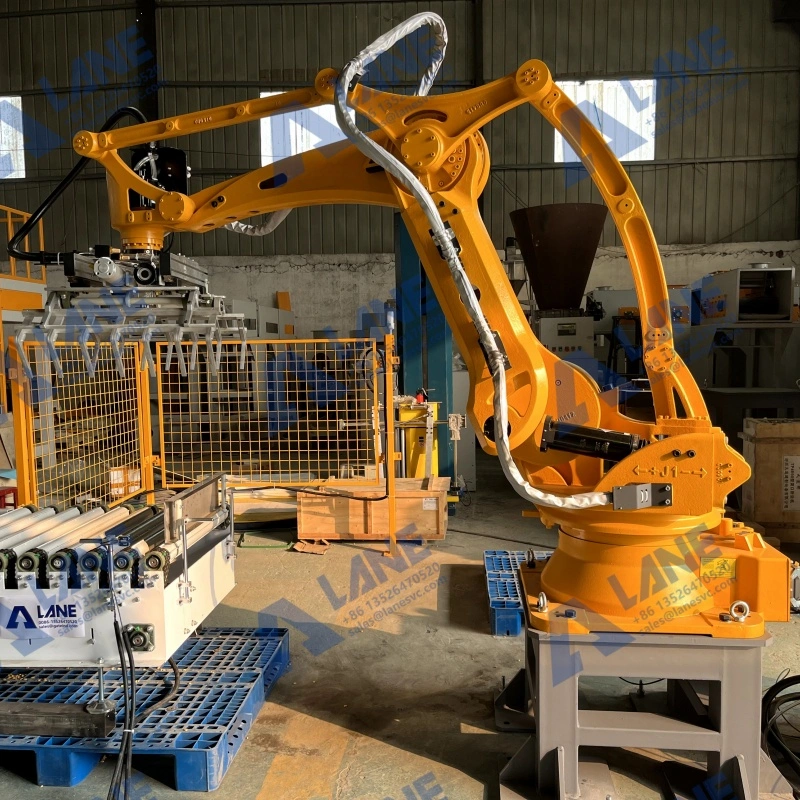

 Six Main Parts of Robotic Palletizing System

1. Multi-axis industrial robotic arm: core execution unit, optional 4-axis/6-axis, high repeat positioning accuracy.
2. Customized end gripper: clip-type, suction-cup, and combination grippers, suitable for fertilizer woven bags, cartons and chemical barrels.
3. Material conveying system: transport the finished bag to the grab station and connect the upstream packaging and packaging equipment.
4. PLC touch control system: stores multiple sets of palletizing programs, supports parameter editing and remote fault alarm.
5. Automatic pallet dispenser and conveyor: automatic supply of empty pallets, optional automatic pallet replacement module.
6. A full set of safety protection systems: safety fences, safety light grids, safety doors to ensure the personal safety of operators.

 Complete Working Flow of Robotic Palletizer

• After packaging, the fertilizer bag is sent to the palletizing station through the conveyor belt.
• The sensor/vision camera detects the position and shape of the packaging bag and transmits the signal to the control cabinet.
• The robotic arm moves according to the preset program and accurately grabs the fertilizer bag through the customized gripper.
• Put the packaging bag stack into the pallet in a staggered and layered style according to customer needs.
• After palletizing a single pallet is completed, the conveyor will transport the whole pallet to the winding and packaging area.
• The system automatically replaces the empty pallet and starts the next round of palletizing cycle without interruption.

Seven Unique Advantages of Robotic Palletizer

1. The degree of automation is extremely high: it can replace 2-4 manual palletizing workers and reduce labor intensity and labor costs in the long run.
2. Strong flexibility and adaptability: one-click switching palletizing program can process a variety of 10/25/50kg fertilizer bags at the same time.
3. Super high palletizing accuracy: the positioning error is extremely small, and the stacking type is neat, which is convenient for warehousing and container loading.
4. Stable continuous operation: industrial robot ontology design, low failure rate, support 24-hour uninterrupted production.
5. Intelligent data management: optional remote monitoring, remote operation and maintenance functions, and online viewing of production data.
6. Wide range of packaging: compatible with a variety of fertilizer packaging forms such as bags, cartons, plastic barrels.
7. All-round safety protection: standard safety isolation device, which meets the international industrial production safety standards.

High-Level Palletizer VS Robotic Palletizer: How to Choose for Your Fertilizer Factory

Choose High-Level Palletizer If You Meet These Conditions

1. The factory only produces single-specification fertilizer bags (fixed 25kg/50kg), with a daily output of more than 500 tons.
2. Hope to control the equipment procurement budget and expect to recover the investment within 1-2 years.
3. The production line runs 24 hours a day, mainly heavy woven fertilizer bags, and does not change product categories frequently.
4. The layout space of the factory is sufficient, and there is no need to switch the palletizing scheme frequently.

Choose Robotic Palletizer If You Meet These Conditions

1. The factory produces a variety of products, organic fertilizers, compound fertilizers and biological fertilizers coexist, and the weight and specifications of packaging bags are diverse.
2. It is necessary to switch the palletization program frequently, and even connect two production lines to palletize synchronously at the same time.
3. The workshop space is limited, and it is hoped that a single equipment can complete the stacking of multi-specification products.
4. There is a long-term intelligent factory planning, which requires remote data monitoring and automated production management.

H2: FAQ About Fertilizer Automatic Palletizer

What is the hourly palletizing capacity of the fertilizer bag palletizer?

The high-level palletizing machine produces 800-1500 bags per hour; the robot palletizing machine usually produces 1000-1200 bags per hour, and the production capacity can be adjusted according to the bag weight and the number of layers.

Can the palletizing machine be used with the winding machine and the strapping machine?

High-level palletizers and Robotic Palletizers are pre-ordered with the docking interface of the packaging equipment, which can be seamlessly linked with winding machines, strapping machines and warehousing conveyors.

Does the fertilizer palletizer support customized services?

Our factory provides a full set of customized services for palletizers: adjust the grip structure, conveying length, palletizing style and control procedures according to the working conditions of the customer’s fertilizer production line, and provide door-to-door installation, debugging and technical guidance.

Conclusion: Why Should Your Next Upgrade Be a Fertilizer Palletizer?

If you take the expansion of fertilizer business seriously, it will no longer be feasible to ignore the end process of the production line. The fertilizer palletizer is not just stacking bags – it is stacking profits, protecting your team, and consolidating the professional image of your brand. Whether you choose the powerful power of the high-level palletizer or the agile intelligence of the robot system, its impact on your profit bottom line will be immediate.

At Henan Lane Heavy Industry, we tailor fertilizer palletizer solutions for you, from compact layout to high-yield beast-level equipment. Don’t let manual palletizing slow down your growth. Contact us immediately, make an appointment to use your own bagged fertilizer for on-site testing, and witness the change in person.
