Introduction of Cat Litter Production Line:

Cat litter production line is a collection of equipment for complete industrial manufacturing of cat litter pellets, which includes mixing, granulation, drying, packaging and other processes to process the raw materials in a series of processing, and finally turned into commercially valuable cat litter pellets.

The raw materials for cat litter production line mainly include:
1. Silica gel: mainly used in the manufacture of silica gel cat litter, which is characterised by strong water absorption, dust-free and easy to clean.
2. Minerals: such as bentonite, clay, etc., commonly used in the manufacture of ordinary cat litter, with good water absorption and agglomeration.
3. Wood shavings or fibres: used to make biomass cat litter, which is environmentally friendly and is also friendlier to some sensitive cats.

cat litter raw materials

Cat litter production line production process:

1. Raw materials are accurately proportioned according to predetermined ratio through dynamic batching machine and fall on the belt machine.

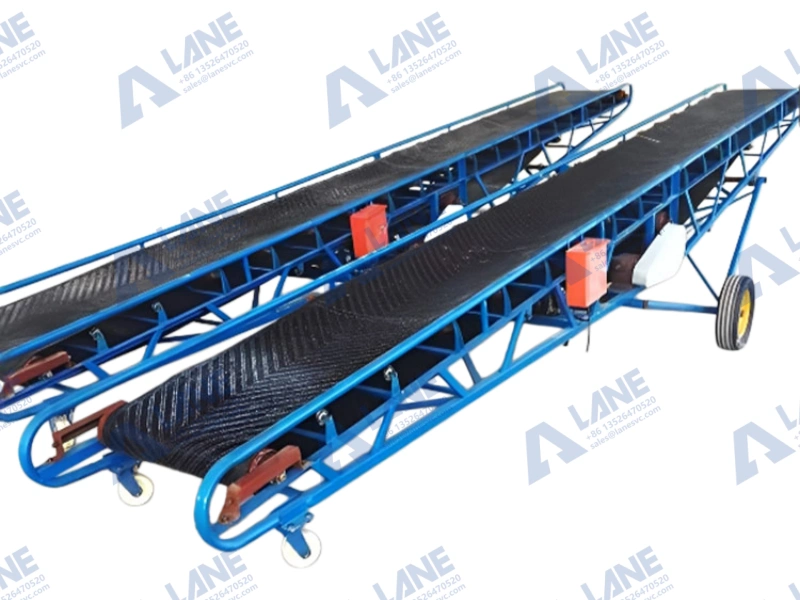

2. The fixed proportion of raw materials passes through the conveyor into the mixer and is fully mixed under the rotation of the mixing shaft. Ensure that all kinds of raw materials are evenly distributed.

3. Mixed raw materials through the conveyor into the disc granulator. In the disc pelletiser, the raw material passes through a high-speed rotating disc and is subjected to centrifugal force to form granules. These granules may be solid or porous, depending on the raw material used and the setting of the granulator.

4. After the disc granulator caused by the granular material is not necessarily the desired size or shape of the particles, in order to get more regular particles, usually through the polishing machine for processing. After the high-speed rotation of the polishing machine, so that the surface is smoother, more rounded shape.pan granulation cat litter production line-7

5. The treated granular cat litter is sent to the drying and cooling machine, where the water in the granules is evaporated by hot air or other means, and the cat litter is cooled at the same time. This step helps to improve the stability of the cat litter and prolong the preservation period.

6. After drying, the cat litter may produce some irregular particles or sticking between particles. The sifter will sift the cat litter to remove impurities and adjust the size of the particles, and the particles that do not meet the requirements will be crushed and returned to re-granulation.

7. After being sifted, the cat litter is sent to the packing machine for packaging. The packing machine can carry out automatic or semi-automatic packing according to the product specifications and requirements, putting the cat litter into bags or other packing containers and sealing them to complete the final packing.



cat litter production line



The significance of using cat litter production line to manufacture cat litter pellets through industrialised production process:

1. Large-scale production: the use of production lines can achieve large-scale, high-efficiency production, greatly improving the production capacity of cat litter to meet market demand.

2. Stable product quality: the production line can achieve precise control of raw material ratios and precise adjustment of process parameters to ensure stable and consistent quality of cat litter pellets.

3. Product diversification: the production line can adapt to different raw materials and process requirements, and can produce a variety of types of cat litter, such as ordinary cat litter, silica gel cat litter, biomass cat litter, etc., to meet the needs of different consumers.

4. The equipment used in our cat litter production line are made of high-quality channel steel and steel plate, in strict accordance with international standards for use, with many years of manufacturing production and export experience, the product performance is stable, solid and durable, it is your good choice!

Cat litter production line has a set of fully automatic production process, can achieve automatic production, diversified production, and to ensure the quality and quantity of the finished product, if you are interested in this project and products, welcome to contact us for more related information!

cat litter pellet
