In modern chemical and organic fertilizer production, manual palletizing of 25kg to 50kg fertilizer bags comes with steep labor costs, high staff turnover, plus severe impacts on worker health and productivity caused by dusty and corrosive working conditions.

To tackle these industry pain points, we developed the Robotic Palletizer for Fertilizer, custom-built specifically for the fertilizer sector. Integrating heavy-duty robotic arm technology with anti-corrosion and dust-proof requirements, the Robotic Palletizer for Fertilizer delivers full-process automation from automatic bagging and bag flattening to precise palletizing. It can run 24/7 reliably, drastically cutting labor intensity while improving stacking neatness and warehouse space utilization. It stands as the ultimate solution for fertilizer manufacturers pursuing intelligent transformation and cost reduction with higher efficiency.

Components and Working Principle

Our Robotic Palletizer for Fertilizer adopts a modular design and consists of these core mechanical units.

Core System Components

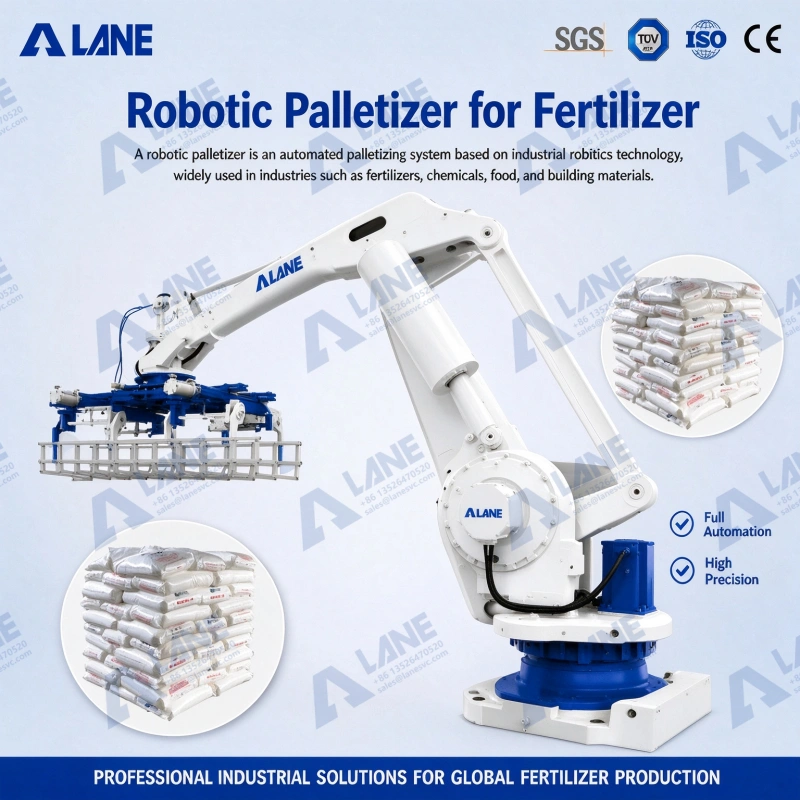

• 4-axis / 6-axis robotic arm:

Choose between 4-axis or 6-axis models based on your throughput requirements. It handles heavy 25kg–50kg fertilizer bags.

• Custom fertilizer gripper (clamping jaw / suction cup):

Tailored to your fertilizer bag materials. Woven bags or valve bags normally use mechanical clamping jaws that grip the bag firmly from both sides. Laminated film bags or paper bags can be fitted with high-flow pneumatic suction cups. The gripper features an anti-drop safety design, so bags will not fall even if power or air supply is cut off.

• Intelligent control cabinet and touchscreen (PLC system):

Equipped with a standard industrial PLC control box and an LCD touchscreen preloaded with various palletizing patterns. Operators do not need advanced computer skills. Simply tap options such as “50kg Urea” or “25kg Compound Fertilizer” on the screen, and the machine will switch settings automatically.

• Conveyor line (belt conveyor / roller conveyor):

Transports bags and pallets. It includes a bag flattening press to smooth bulging fertilizer bags, a bag-turning conveyor to adjust bag orientation, and heavy-duty chain roller conveyors to move fully loaded pallets out of the station.

• Safety guard fencing and safety light curtains:

Wire mesh safety fencing paired with infrared light curtains. The robotic arm exerts powerful force, so safety is prioritized. The machine immediately stops operation if the fence door is opened or if anyone crosses the infrared light barrier to prevent injury.

Working Principle

• Flattening:

Freshly filled fertilizer bags are bulging. They first pass through the bag press roller, which evenly distributes fertilizer and air inside to flatten the bags. Flat bags prevent stack collapse at higher pallet heights.

• Orientation adjustment:

The flattened bags move forward. The bag turner rotates bags by 90 degrees or lets them travel straight to line up for stacking.

• Bag picking:

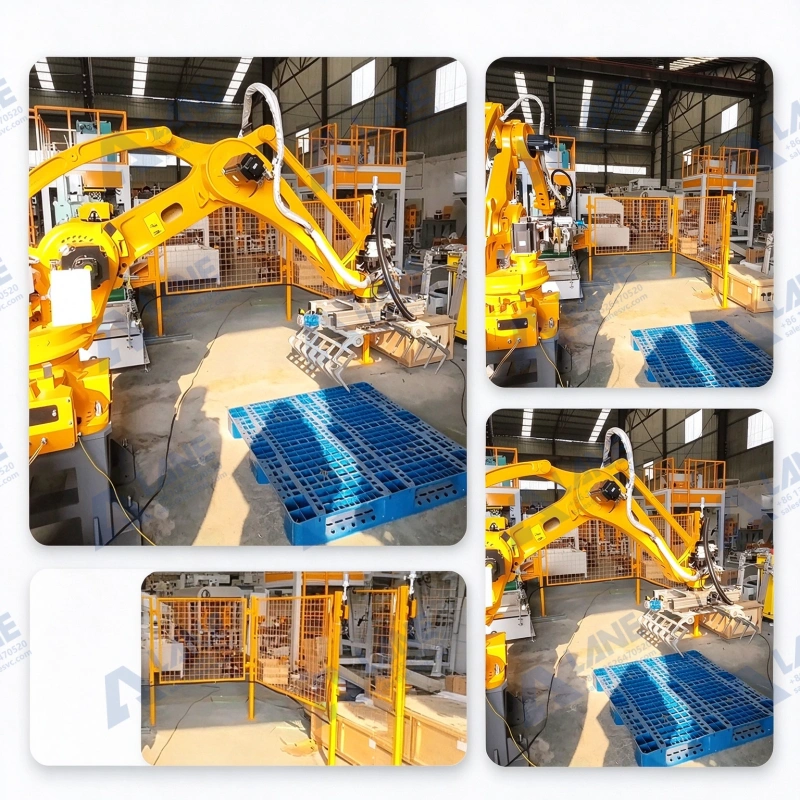

The robotic arm lowers, and the gripper secures the fertilizer bag. The arm rotates quickly and places each bag accurately onto wooden pallets one after another.

• Pallet discharge:

Once a pallet is fully stacked (for example, 5 layers at one ton total), the heavy-duty conveyor underneath activates automatically to carry away the full pallet of fertilizer. An empty pallet feeds into the station right after to start the next stacking cycle.

Technical Specifications Table

Key Features and Advantages

Replacing manual palletizing with robotic arms on fertilizer production lines is more than an automation upgrade. It is a practical, effective way for factories to slash high labor costs and resolve recruitment shortages. Our Robotic Palletizer for Fertilizer offers these tangible benefits:

Cut labor costs sharply and boost production output

• Optimized workforce allocation: Fertilizer packaging typically uses heavy 25kg–50kg bags that place extreme physical strain on manual workers. The Robotic Palletizer for Fertilizer enables unattended, round-the-clock automated operation to achieve major cost savings and productivity gains.

• Consistent high throughput: Human workers slow down as fatigue sets in, limiting stable output. The Robotic Palletizer for Fertilizer maintains steady operating speed. It can palletize 600 to 1000 bags per hour consistently and matches perfectly with high-speed automatic bagging machines upstream to maximize line capacity.

Premium anti-corrosion and dust-proof design to extend equipment service life

• Outstanding chemical corrosion resistance: Fertilizer materials including urea, compound fertilizer and phosphate fertilizer carry strong corrosive properties.

• All key gripper structures of the Robotic Palletizer for Fertilizer use high-grade stainless steel (304/316) or special anti-corrosion coating treatment.

• Critical fasteners and bearings receive enhanced anti-corrosion processing to avoid mechanical jamming or component damage caused by chemical erosion.

• High protection rating for heavy dust conditions: Built for dusty fertilizer plant environments, the robotic arm reaches IP65/IP67 protection class. Electrical cabinets and core servo motors adopt fully sealed construction to block dust ingress entirely, allowing the Robotic Palletizer for Fertilizer to run reliably for long periods in harsh working conditions without downtime.

Millimeter-level palletizing accuracy to secure warehouse storage and long-distance transport

• Tight, uniform stacking quality: Powered by precise motion trajectory algorithms, the Robotic Palletizer for Fertilizer achieves millimeter repeat positioning accuracy. Completed pallets are neat and tightly packed.

• Multiple palletizing patterns available: The Robotic Palletizer for Fertilizer comes with built-in standard stacking layouts such as five-bag pattern and six-bag sequence pattern. High-quality dense stacking not only raises warehouse space utilization greatly, but also prevents stack collapse, bag sliding or bag rupture during forklift handling and long-haul truck delivery, protecting your brand and product reputation.

Modular industrial design, low maintenance cost and simple troubleshooting

• Standard hardware for easy servicing: The Robotic Palletizer for Fertilizer has a streamlined structure. All core transmission parts are standard industrial components. Daily work only requires routine cleaning and lubrication, with no need for dedicated senior technicians on site.

• Intelligent fault diagnosis system: Supported by the PLC control system, the Robotic Palletizer for Fertilizer features comprehensive self-diagnosis functions. On-site plant electricians can identify faults and restore production within minutes.

Application Scope of the Robotic Palletizer for Fertilizer

Applicable material types

The Robotic Palletizer for Fertilizer handles granular, crystalline, powdered or flake fertilizers and agricultural materials perfectly:

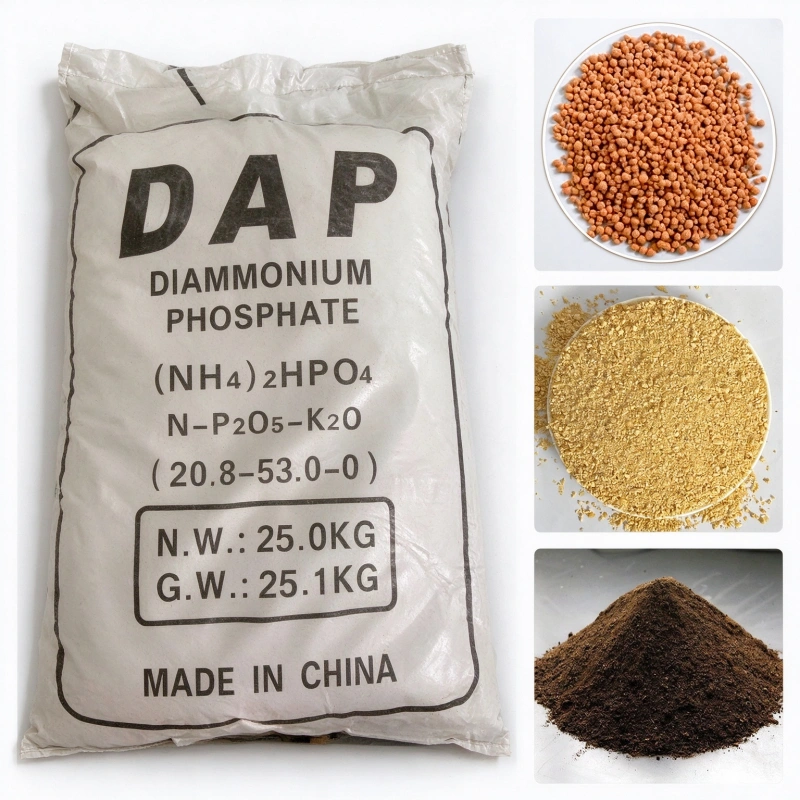

• Chemical fertilizers and compound fertilizers: Urea, NPK compound fertilizer, ammonium sulfate, ammonium nitrate, diammonium phosphate (DAP), potash fertilizer and more.

• Organic and bio-fertilizers: Granular bio-organic fertilizer, powdered blended organic fertilizer, compost, peat mixtures, etc.

• Agricultural and bulk commodities: Animal feed pellets, concentrated feed, crop seeds, rice and grain, soil conditioners, soybean meal and others.

Compatible bag materials and styles

No matter what packaging material you use, the Robotic Palletizer for Fertilizer adjusts gripping force and method to avoid bag damage and powder leakage:

• PP/PE woven bags: Standard plastic woven bags and laminated woven bags widely used in the fertilizer industry.

• Valve bags and square bottom bags: Multi-layer paper valve bags, PE valve bags, commonly used for premium fertilizers and fine chemicals.

• Kraft paper bags and composite bags: Multi-layer kraft paper sacks, paper-plastic composite bags.

• Heavy-duty plastic film bags (FFS / PE Film Bags): Single-layer or multi-layer heavy PE film bags from fully automatic packaging lines.

• Packaging weight range: Standard configuration works seamlessly with 20kg, 25kg, 40kg, 50kg and other heavy packaging specifications.

Applicable industry sectors

Beyond fertilizer manufacturing plants, the heavy-duty, anti-corrosion and dust-resistant design of the Robotic Palletizer for Fertilizer also fits these similar industrial scenarios:

• Fertilizer and manure manufacturing facilities: Large urea production lines, middle and downstream packaging workshops for compound fertilizer.

• Chemical and mineral processing industry: Salt chemical products, industrial alkali, PVC resin powder, carbon black, talcum powder, quartz sand and other dusty, corrosive bulk bag palletizing.

• Feed and grain processing plants: Bulk livestock feed, pet food, grain warehousing and logistics center palletizing operations.

• Building materials and metallurgy sector: Automatic stacking of bagged specialty cement, putty powder, dry mortar and other construction materials.

FAQ about the Robotic Palletizer for Fertilizer

To help you evaluate and select the Robotic Palletizer for Fertilizer, we compiled these common technical and commercial questions for fertilizer packaging line upgrades:

Q1: Fertilizer plants have heavy dust and strong corrosion. How long will this machine last? Does it require frequent maintenance?

A: LANE Robotic Palletizer for Fertilizer is engineered for tough industrial environments. The robotic arm reaches IP65/IP67 protection class, with fully sealed motors and electrical circuits. Custom grippers are made of stainless steel (304/316) or multi-layer anti-corrosion coatings. With proper routine maintenance including regular bearing greasing and dust cleaning, the Robotic Palletizer for Fertilizer can serve you for 8 to 10 years. It is a capital investment with one-time purchase cost and long-term returns.

Q2: If we change fertilizer bag specifications for the Robotic Palletizer for Fertilizer, for example switching from 25kg bags to 50kg bags, do we need to buy a new machine?

A: There is no need. This is the flexible advantage of robotic palletizing systems. Our intelligent PLC control system supports management of multiple palletizing recipes. When you change bag dimensions, weight or stacking layers per pallet, operators simply switch profiles or fine-tune parameters on the touchscreen with one click. If packaging material changes fundamentally, for instance switching from rigid paper bags to very soft laminated woven bags, normally only the clamping gripper needs replacement.

Q3: What after-sales service and technical support do you provide after purchase?

A: We deliver full-cycle overseas after-sales technical support.

• Pre-shipment testing: Full line pre-assembly and linkage testing are strictly completed before delivery.

• Installation guidance: We supply detailed 3D layout drawings, electrical schematics and video tutorials for the Robotic Palletizer for Fertilizer. When needed, experienced engineers can travel to your site for on-site installation, wiring guidance and system commissioning.

• Staff training: We train your in-house electricians and operators on Robotic Palletizer for Fertilizer operation and basic troubleshooting.

• Remote diagnosis: The electrical control system supports remote module connection. When technical issues arise, our engineers can offer remote support within minutes to keep your production line running.
