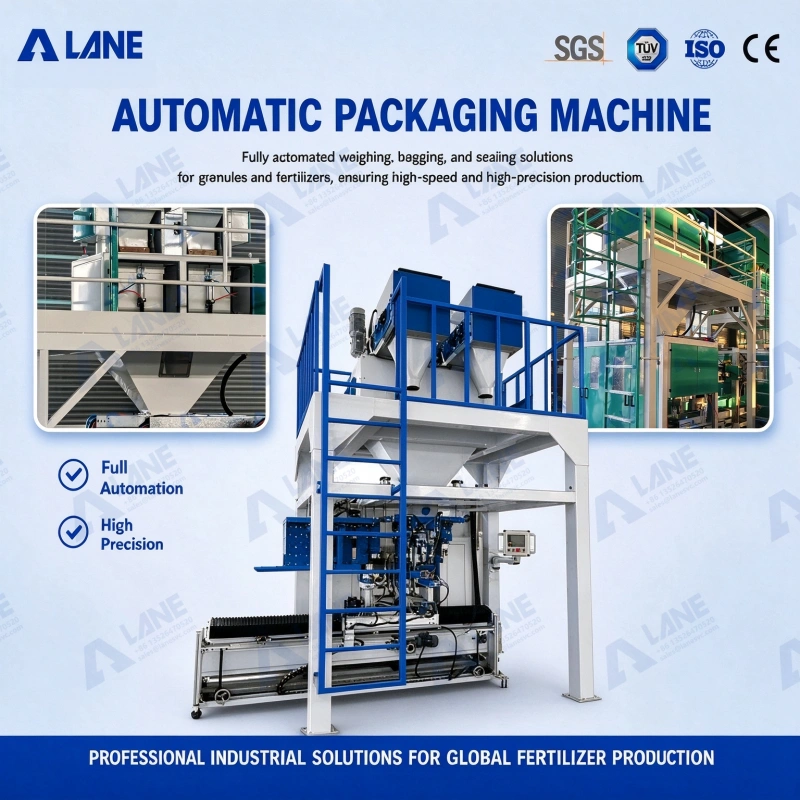

Our high-efficiency Automatic fertilizer packaging machine is designed to upgrade your chemical fertilizer, organic fertilizer or compound fertilizer production line into a fully automated, high-speed operation. This advanced Automatic fertilizer packaging machine has been specially developed to tackle the tough characteristics of agrochemicals, including strong corrosion, dust dispersion and moisture absorption, to guarantee precise weighing and metering, stable bag placing and robust airtight sealing.

By replacing traditional manual operations, our Automatic fertilizer packaging machine can minimize material waste, improve workshop safety, and significantly boost the overall return on investment of your factory.

Working Principle and Component Composition

Component Composition

An industrial-grade fully Automatic fertilizer packaging machine requires a robust and precise structure to ensure continuous operation in harsh chemical environments. Our system consists of the following heavy-duty modules:

• Large-capacity material hopper: Stores fertilizer raw materials and adopts a special anti-bridging / anti-blocking design to ensure smooth, uninterrupted material flow downwards.

• Intelligent feeding and metering system: Equipped with gravity free-fall, heavy-duty belt or twin-screw feeding devices, precisely selected according to whether your fertilizer is in granular form (urea / compound fertilizer) or powder form (organic fertilizer / humic acid).

• High-precision load cell system: Fitted with digital load cells to dynamically monitor the weight of each bag in real time.

• Pneumatic bag-clamping mechanism: Firmly holds packaging bags during high-speed filling, with a chemically resistant rubber lining to effectively prevent bag dropping.

• Automatic bag magazine: Fully automatic robotic arm assembly replaces manual labour to automatically pick bags, vacuum-open bags and fit them onto the filling discharge spout.

• Downstream sealing and stitching workstation: Equipped with heavy-duty continuous heat sealers or automatic industrial bag stitchers with automatic thread trimming function.

• Centralized PLC control system: Adopts high-end intelligent controllers.

Working Principle

The fully Automatic fertilizer packaging machine executes a seamless closed-loop cycle to maximize speed and reduce material waste:

Material feeding and metering: Fertilizer raw materials fall from the main hopper into the feeding system. The system intelligently switches between “fast (coarse) feeding for high output” and “slow (fine) feeding to guarantee absolute precision”.

Autonomous weighing: The computer control system processes signals from the load cells. Once the exact preset weight (e.g. 25kg or 50kg) is reached, the feeding gate closes and locks instantly.

Automatic bag loading: At the same time, a pneumatic robotic arm picks an empty bag from the bag magazine, inflates it with a short burst of air, and accurately fits it onto the discharge spout.

Airtight bag clamping and filling: Bag clamping jaws form a seal around the bag mouth to prevent dust leakage. The internal discharge valve opens to release the weighed fertilizer into the bag. Meanwhile, an integrated dust extraction port draws fine airborne dust out of the system.

Conveying and airtight sealing: Filled bags land smoothly on a heavy-duty electric conveyor. Guide rails align the bag mouths and feed them directly into the heat sealing unit or automatic bag stitcher to form a perfect moisture-proof seal.

Technical Parameter Table

Main Features and Core Advantages

Main Features

LANE fully Automatic fertilizer packaging machine is built to withstand harsh industrial environments. It combines high-end core components and innovative design to deliver unmatched outstanding performance:

• Industrial-grade corrosion-resistant design (SUS304/SUS316L):

Fertilizers such as urea and compound fertilizer are highly corrosive. All material-contact parts of the Automatic fertilizer packaging machine are manufactured from premium stainless steel, supplemented with chemically resistant surface coatings to completely eliminate rusting and double the service life of the Automatic fertilizer packaging machine.

• Intelligent multi-stage feeding calibration:

Adopts advanced fast-slow (coarse-fine) feeding control algorithms. The system automatically fine-tunes flow rate according to material density and achieves excellent weighing accuracy of ±0.2% to 0.5%, greatly cutting your raw material costs.

• Eco-friendly dust suppression system:

Equipped with fully airtight protective covers plus multi-point dust extraction ports. It captures 99% of drifting dust during discharging and filling stages, keeping the workshop clean and protecting the respiratory health of operators.

• Flexible packaging bag compatibility and fast switching:

The Automatic fertilizer packaging machine is easily compatible with multi-layer PE plastic bags, composite paper bags and PP woven bags. Its digital touchscreen can store up to 20 preset formulas, allowing operators to complete rapid adjustment and switching of bag types within 10 minutes.

Core Commercial Advantages and Return on Investment

• Sharp reduction in labour cost:

One full Automatic fertilizer packaging machine line can completely replace 3 to 4 traditional workers (for bag placing, weighing, sealing and handling). It enables your factory to re-optimize manpower budgets and recover the investment in the Automatic fertilizer packaging machine within 6 to 12 months.

• 24/7 continuous operation stability:

Minimizes unplanned downtime to ensure your packaging line runs at full capacity smoothly during peak agrochemical seasons.

• Complete elimination of overweight waste:

Traditional manual weighing usually overfills intentionally to avoid underweight, which causes invisible product waste. The Automatic fertilizer packaging machine uses ultra-precise digital load cells to ensure every bag reaches the preset weight exactly with no loss.

• Improved brand image and packaging finish:

Automated mechanical positioning combined with dual-stage constant-temperature heat sealing or high-speed precision stitching technology on the Automatic fertilizer packaging machine ensures aligned bag mouths, neat stitching lines and attractive appearance, greatly boosting the end-market competitiveness of your fertilizer.

Application Scenarios and Scope of Application

With custom-configured feeding mechanisms, the Automatic fertilizer packaging machine perfectly adapts to various physical forms of chemical and organic materials:

• Free-flowing granular materials (gravity / belt feeding):

Ideal for hard, uniform and free-flowing round granules. The gravity discharging system performs high-speed bagging relying on the material’s own gravity while effectively preventing particle breakage.

• Viscous or irregular organic solid materials (heavy-duty belt / screw feeding):

Designed for organic compound fertilizer and compost that may contain residual moisture or viscous molasses binders. The forced feeding mechanism thoroughly prevents material caking and bridging blockages inside the hopper.

Target Industries and Applicable Fertilizers

• Chemical fertilizer manufacturing plants:

Fully optimized for heavy bulk bag packaging of standard synthetic fertilizers, including urea, NPK compound fertilizer, diammonium phosphate (DAP), muriate of potash (MOP) and ammonium sulfate.

• Commercial organic fertilizer / compost plants:

Designed for large-batch bagging of granular or powdered organic fertilizers, such as fermented chicken manure / cow manure fertilizer, humic acid, seaweed extract and fermented urban biomass waste.

• Soil amendment producers:

Efficient bagging for bulk dry minerals used to balance soil pH and optimize soil structure, such as agricultural lime, gypsum, dolomite and sulfur powder.

• Water-soluble fertilizer and trace element industry:

Delivers laboratory-level precise metering for high-end water-soluble fertilizer (WSF), foliar spray fertilizer and trace elements (zinc, boron, magnesium, etc.) to guarantee zero cross-contamination.

Common Troubleshooting and Corrective Actions

Fault 1: Weighing and metering out of tolerance

• Symptom: The weight of single packed bags continuously exceeds the preset accuracy range (e.g. ±0.2%).

• Root causes:

>Fertilizer dust or salt-out fertilizer agglomerates accumulate inside or around the weighing hopper and interfere with sensor readings.

>High-precision load cells are disturbed by external mechanical vibration, or sensor calibration drifts.

• Corrective actions:

>Step 1: Shut down the feeding line and thoroughly clean fertilizer residue agglomerates on the inner wall and exterior of the weighing hopper.

>Step 2: Perform “one-click zeroing / tare” operation via the touchscreen interface.

>Step 3: If the fault persists, place standard weights into the hopper and start the digital weight recalibration procedure following the manual.

Fault 2: Filling interruption or premature bag drop / bag slip

• Symptom: The packaging bag detaches from the discharge spout before fertilizer discharging finishes, leading to massive material spillage.

• Root causes:

>Air pressure from the factory main air compressor pipeline drops below the minimum operating air pressure (0.5 MPa) required by the Automatic fertilizer packaging machine.

>Rubber pads on pneumatic bag clamping jaws are heavily worn, or their surface is covered with slippery fertilizer dust.

• Corrective actions:

>Step 1: Check the air pressure gauge to ensure stable compressed air supply maintained between 0.4 MPa and 0.6 MPa.

>Step 2: Blow off dust and crystals on the inner side of clamping jaws using an air blow gun.

> Step 3: Inspect the rubber lining of clamping jaws; if it becomes smooth and worn due to long-term chemical friction, immediately replace the quick-change rubber spare parts supplied with the machine.

Fault 3: Poor sealing or stitching thread loosening / breaking

• Symptom: Heat seals on PE plastic bags split under pressure, or stitching threads on PP woven bags unravel and break.

• Root causes:

>Improper temperature setting of digital heat sealing bars (too high or too low), which fails to match the actual micron-level thickness of packaging bags.

>Incorrect threading direction on the heavy-duty industrial stitching head, bent or broken needles, or jamming caused by long-term lack of lubricating oil on the stitching head.

• Corrective actions:

> For plastic bags: Fine-tune the PID temperature controller on the panel in 5°C increments until a perfect transparent airtight sealing line is formed under compression.

> For woven bags: Stop the conveyor, re-thread following the engraved path on the stitching head, inspect and replace damaged needles, and fill the stitching head oil reservoir with dedicated high-quality lubricating oil.

Full Automatic Fertilizer Packaging Machine Line Integration Solution

Standalone bagging is only the first step of automation upgrade. Our Automatic fertilizer packaging machine architecture adopts universal industrial communication protocols (such as Modbus or Profinet), and can be seamlessly expanded into a fully integrated automatic fertilizer post-packaging full-line project:

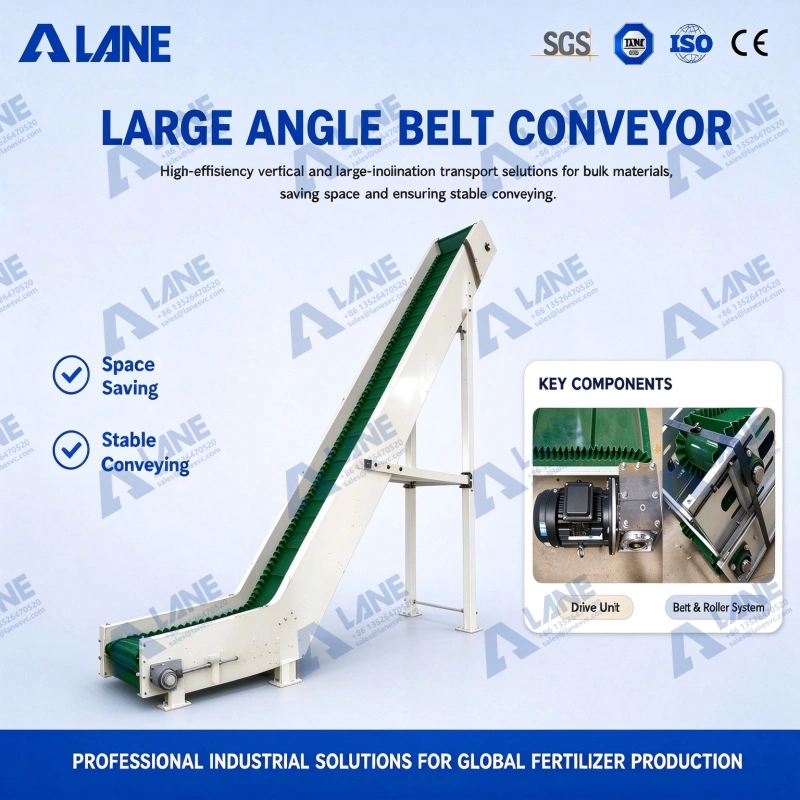

• Upstream bulk material conveying connection: Seamlessly cascaded with fertilizer storage silos, bucket elevators and vibrating screens to achieve automatic, non-clogging continuous raw material supply.

• Dust removal: Built-in cyclone dust collectors and baghouse dust collectors capture and process scattered dust generated during packaging to keep the working environment clean and reduce environmental pollution.

• In-line inspection and rejection module: Integrated heavy-duty in-line checkweigher and industrial metal detector to automatically reject bags with unqualified weight or mixed metal impurities safely.

• Robotic automatic palletizing system: Connected to automatic pallet magazines and high-speed palletizing robots to neatly stack 50kg heavy bags onto pallets, completely eliminating strenuous manual physical labour.
